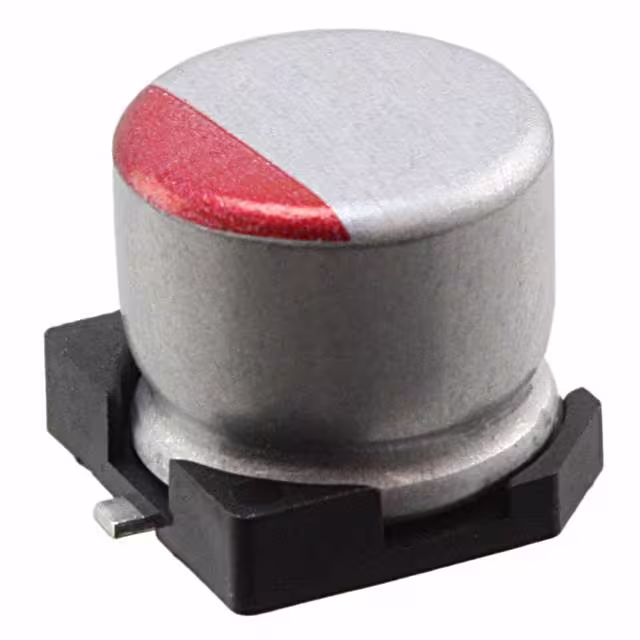

RFA0E331MCN1GS

Manufacturer :

Nichicon

Product Category :

Aluminum - Polymer Capacitors

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

ESR (Equivalent Series Resistance) :

10MOhm

Surface Mount Land Size :

0.209 L x 0.209 W (5.30mm x 5.30mm)

Mounting Type :

Surface Mount

Life (Hours) :

2000 hours

Type :

Polymer

Capacitance :

330µF

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

FPCAP, RFA

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Size / Dimension :

0.197 Dia (5.00mm)

Height - Seated (Max) :

0.236 (6.00mm)

Ripple Current :

3.3A

Applications :

GENERAL PURPOSE

Mount :

Surface Mount

Number of Terminations :

2

Ratings :

-

Min Operating Temperature :

-55°C

Ripple Current @ High Frequency :

3.3A @ 100kHz

Tolerance :

20%

Ripple Current @ Low Frequency :

330mA @ 120Hz

Height Seated (Max) :

5.9944mm

Dielectric Material :

ALUMINUM (SOLID POLYMER)

Operating Temperature :

-55°C ~ 105°C

Lead Spacing :

-

Polarity :

Polar

Voltage - Rated :

2.5V

Package / Case :

Radial

Lifetime @ Temp. :

2000 Hrs @ 105°C

Max Operating Temperature :

105°C

HTS Code :

8532.22.00

RoHS Status :

RoHS Compliant
