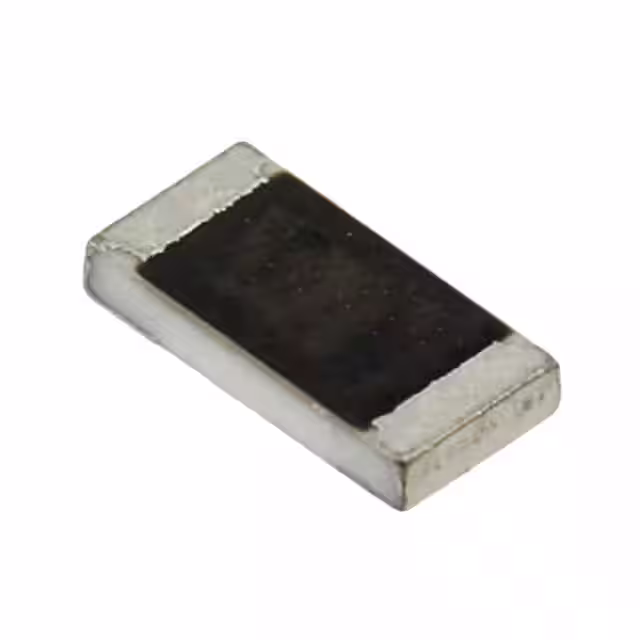

RGC0402DTC10K2

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Mounting Feature :

Surface Mount

Reference Standard :

AEC-Q200

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Failure Rate :

-

Product Status :

Active

Tolerance :

0.5

Package / Case :

0402 (1005 Metric)

Temperature Coefficient :

50

Operating Temperature :

-55°C ~ 155°C

Power (Watts) :

0.063W, 1/16W

Size Code :

402

Packing Method :

TR, Paper, 7 Inch

Height - Seated (Max) :

0.016 (0.40mm)

Construction :

RECTANGULAR

Technology :

METAL GLAZE/THICK FILM

Resistor Type :

FIXED RESISTOR

Series :

RGC

Size / Dimension :

0.039 L x 0.020 W (1.00mm x 0.50mm)

Number of Terminations :

2

Package Height :

0.3

Additional Feature :

PRECISION

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Working Voltage :

50

Number of Terminals :

2

Supplier Device Package :

0402

Composition :

Thick Film

Package Width :

0.5

Rated Power Dissipation (P) :

0.063

Rated Temperature :

70

Package Length :

1

Resistance :

10200

Terminal Shape :

WRAPAROUND

Ratings :

AEC-Q200

Features :

Automotive AEC-Q200
