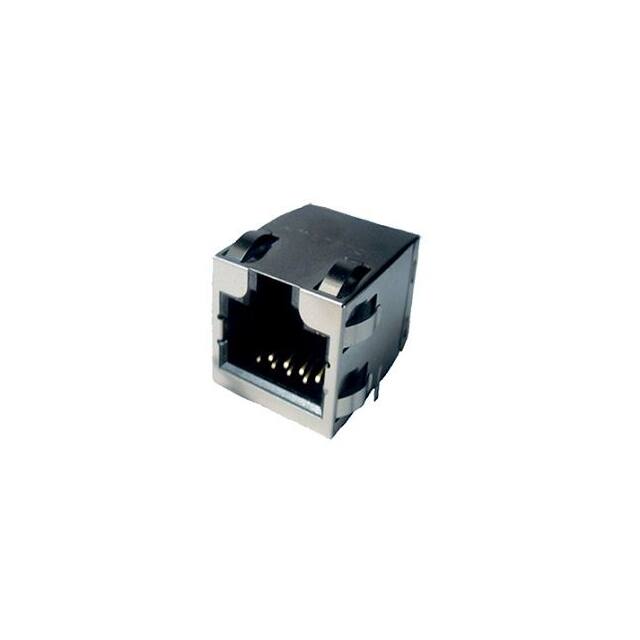

RJE1A1885441

Manufacturer :

Amphenol Communications Solutions

Product Category :

Modular Connector Jacks

Flammability Rating :

UL 94 V-0

Voltage Rating :

125 VAC

Tab Direction :

UP

IP Rating :

-

Product Type :

Modular Connectors / Ethernet Connectors

Termination Style :

Solder Pin

Termination :

Solder

Shielding :

Shielded

Insulation Resistance :

500 MOhms

Number of Ways :

8P8C

Manufacturer :

Amphenol

Mating Cycles :

750 Cycles

Packaging :

Tray

Mounting Angle :

RIGHT ANGLE

Package :

Tray

Mounting Style :

PCB Mount

Gender :

FEMALE

Product Status :

Active

Maximum Operating Temperature :

+ 85 C

Configuration :

1x1

Mounting Type :

PCB Mount

Number of Contacts :

8 Contact

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Base Product Number :

RJE1A18

Ratings :

Cat5e

Product :

Connectors

Port Configuration :

1 x 1 (Port)

Product Category :

Modular Connectors / Ethernet Connectors

Connector Type :

JACK

RoHS :

Details

Brand :

Amphenol Commercial Products

USOC Codes :

RJ45

Features :

-

Operating Temperature :

-55°C ~ 85°C

Pitch :

1.02 mm

Contact Material :

Phosphor Bronze

Ethernet Connector Type :

RJ45 Connector

LEDs :

With LED

Subcategory :

Modular Connectors / Ethernet Connectors

Contact Finish :

Gold

Contact Finish Thickness :

-

Series :

RJE1A

Ingress Protection :

-

Type :

Modular

Connector Orientation :

RIGHT ANGLE

LED Color :

Green - Yellow

Number of Ports :

1

Number of Positions :

8 Position

Application :

1G/2.5G Base-T

Housing Material :

Thermoplastic

Number of Rows :

1

Current Rating :

1.25 A

Orientation :

90° Angle (Right)

Shield Type :

Shielded

Color :

Black

Operating Temperature Range :

- 55 C to + 85 C

Minimum Operating Temperature :

- 40 C

Contact Plating :

Gold
