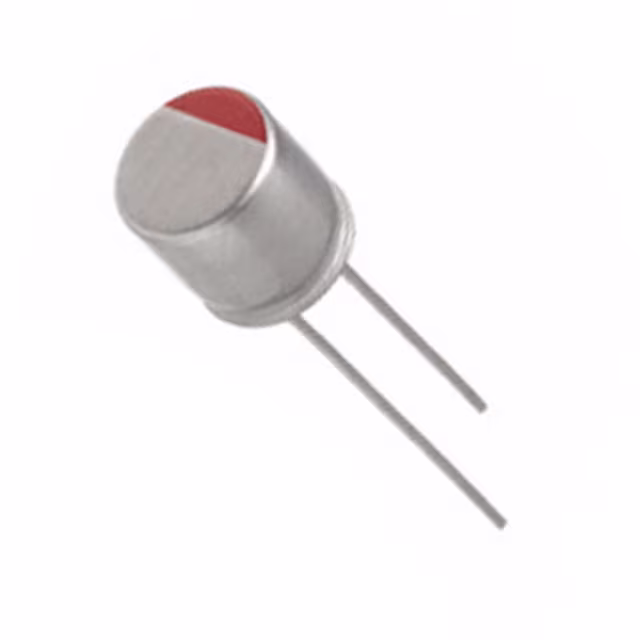

RL80E561MDN1KX

Manufacturer :

Nichicon

Product Category :

Aluminum - Polymer Capacitors

Height :

8mm

Mount :

Through Hole

Tolerance :

20%

Diameter :

8mm

Polarity :

Polar

Package / Case :

Radial

JESD-609 Code :

e3

Current - Leakage :

500μA

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Max Operating Temperature :

105°C

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Voltage - Rated DC :

2.5V

Dielectric Material :

Polymer

Packaging :

Cut Tape

Terminal Finish :

Matte Tin (Sn)

Ripple Current :

6.1A

HTS Code :

8532.22.00

Terminal Shape :

Wire

Capacitance :

560μF

Length :

8mm

Life (Hours) :

2000 hours

Dissipation Factor :

0.12 %

Number of Terminations :

2

Terminal Pitch :

3.5mm

REACH SVHC :

No SVHC

Min Operating Temperature :

-55°C

ESR (Equivalent Series Resistance) :

6mOhm

Pbfree Code :

yes

Lead Pitch :

3.5052mm

Height Seated (Max) :

8.001mm
