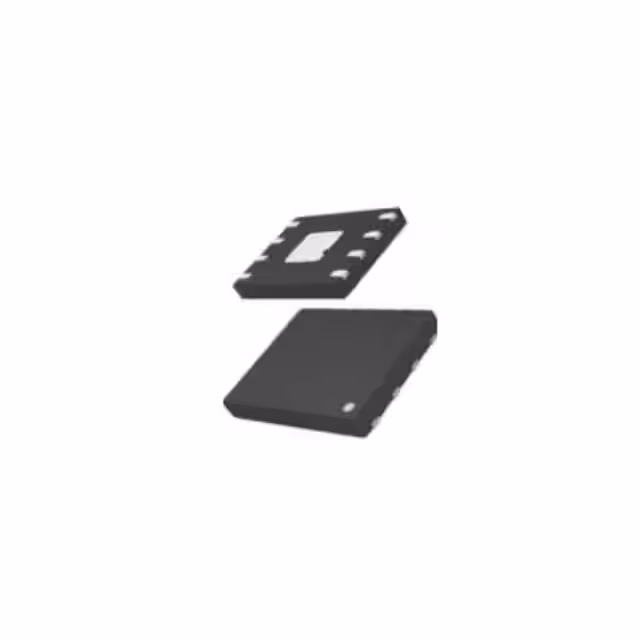

RM100N30DF

Manufacturer :

Rectron USA

Product Category :

Transistors - FETs, MOSFETs - Single

Series :

-

RoHS :

Y

Maximum Operating Temperature :

+ 175 C

Product Type :

MOSFET

Transistor Polarity :

N-Channel

Vgs (Max) :

±20V

Supplier Device Package :

8-DFN (5x6)

Operating Temperature :

-55°C ~ 175°C (TJ)

Product Category :

MOSFET

Capacitance :

Input Capacitance (Ciss) - 5000pF

Mounting Type :

Surface Mount

Drain to Source Voltage (Vdss) :

30 V

Transistor Type :

1 N-Channel

Package :

Tape and Reel (TR)

Minimum Operating Temperature :

- 55 C

Rds On (Max) @ Id, Vgs :

2.5mOhm @ 20A, 10V

Vgs(th) (Max) @ Id :

2.5V @ 250μA

Configuration :

Single

Mounting Style :

SMD/SMT

FET Type :

N-Channel

Packaging :

Case - DFN

Brand :

Rectron

Input Capacitance (Ciss) (Max) @ Vds :

5000 pF @ 15 V

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Channel Mode :

Enhancement

Product Status :

Active

Subcategory :

MOSFETs

Package / Case :

8-PowerVDFN

FET Feature :

-

Number of Channels :

1 Channel

Rise Time :

24 ns

Manufacturer :

Rectron

Power Dissipation (Max) :

65W (Tc)

Voltage :

Vdss - 30V

Current - Continuous Drain (Id) @ 25°C :

100A (Tc)
