RM75N60LD

Manufacturer :

Rectron USA

Product Category :

Transistors - FETs, MOSFETs - Single

Vgs(th) (Max) @ Id :

4V @ 250µA

Series :

-

RoHS :

Y

Drain to Source Voltage (Vdss) :

60 V

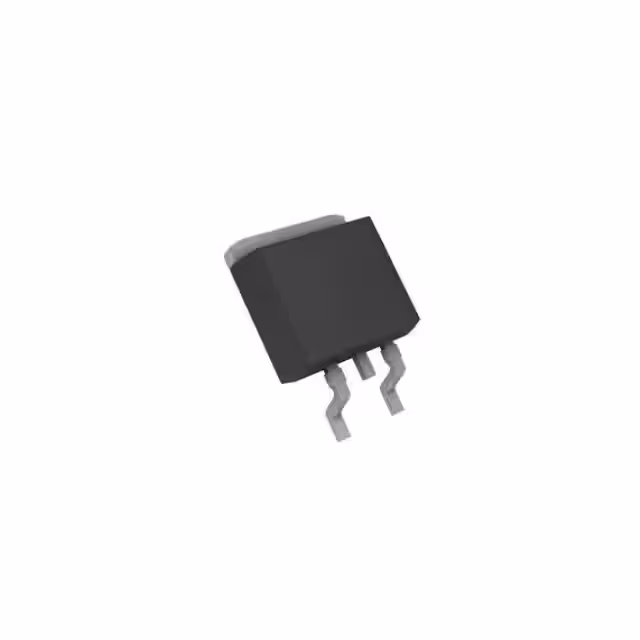

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Packaging :

Case - TO-252

Drive Voltage (Max Rds On, Min Rds On) :

10V

FET Feature :

-

Voltage :

Vdss - 60V

Product Status :

Active

Input Capacitance (Ciss) (Max) @ Vds :

2350 pF @ 25 V

Power Dissipation (Max) :

110W (Tc)

Rds On (Max) @ Id, Vgs :

11.5mOhm @ 30A, 10V

Vgs (Max) :

±20V

Package :

Tape and Reel (TR)

Manufacturer :

Rectron

Operating Temperature :

-55°C ~ 175°C (TJ)

Supplier Device Package :

TO-252-2

FET Type :

N-Channel

Capacitance :

Input Capacitance (Ciss) - 2350pF

Mounting Type :

Surface Mount

Current - Continuous Drain (Id) @ 25°C :

75A (Tc)
