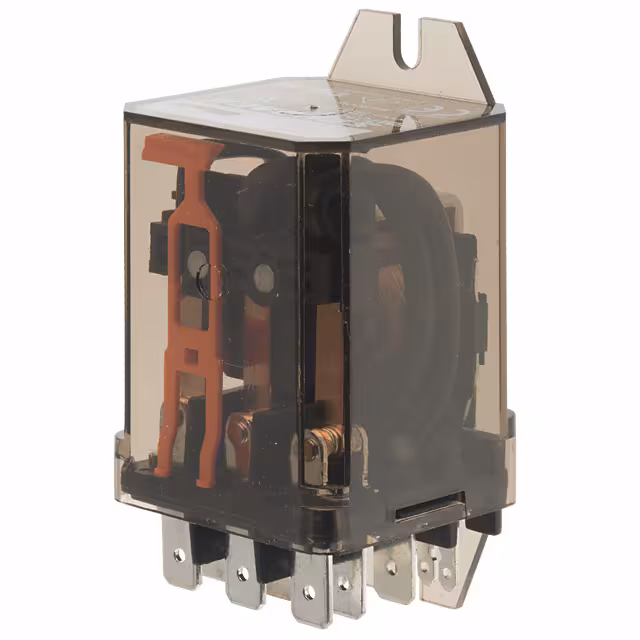

RM808024
Or copy the link below:
- Mfr.Part #
- RM808024
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 25A 24V
- Stock
- 31,158
- In Stock ：
- 31,158
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Features :
- Mechanical Indicator
- Coil Resistance :
- 475 Ohms
- Dropout Voltage :
- 2.4 V
- Coil Type :
- Non Latching
- Contact Current Rating :
- 25 A
- Package :
- Tray
- Mounting Type :
- DIN Rail
- Mount :
- DIN Rail
- Series :
- RM, SCHRACK
- Operating Temperature :
- -45°C ~ 65°C
- ELV :
- Non-Compliant
- Coil Insulation :
- -
- Must Operate Voltage :
- 18 VDC
- Contact Voltage Rating (AC) :
- 400 V
- Width :
- 35.5 mm
- Termination :
- Quick Connect
- Operate Time :
- 15 ms
- Must Release Voltage :
- 2.4 VDC
- Coil Power :
- 1.5 W
- Contact Rating (Current) :
- 25 A
- Min Operating Temperature :
- -40 °C
- Contact Form :
- DPDT (2 Form C)
- RoHS :
- Compliant
- Relay Type :
- GENERAL PURPOSE
- Throw Configuration :
- DPDT
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- Seal Rating :
- -
- Release Time :
- 10 ms
- Weight :
- 81.051287 g
- Product Status :
- Obsolete
- Max Operating Temperature :
- 65 °C
- Height :
- 48.5 mm
- Length :
- 38.481 mm
- Switching Voltage :
- 400VAC - Max
- Lead Free :
- Not Applicable
- Coil Voltage (DC) :
- 24 V
- Coil Voltage :
- 24VDC
- Contact Material :
- Silver Cadmium Oxide (AgCdO)
- Coil Current :
- 50 mA
- Datasheets
- RM808024
RM808024 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
