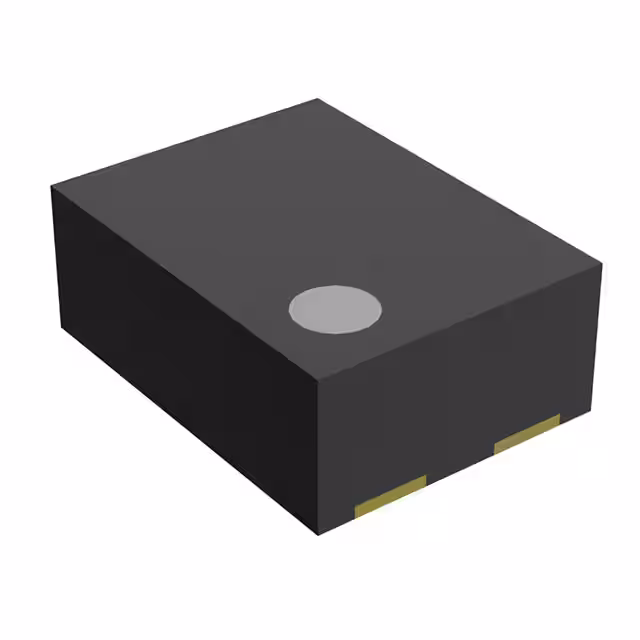

RP100K241D-TR

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Input Voltage (Max) :

5.25V

Terminal Position :

Dual

RoHS Status :

RoHS Compliant

Pin Count :

4

Output Voltage1-Max :

2.4144V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Length :

1.6mm

Height Seated (Max) :

0.6mm

Width :

1.2mm

Number of Functions :

1

Qualification Status :

Not Qualified

Terminal Finish :

Gold (Au)

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

260

Terminal Pitch :

0.6mm

HTS Code :

8542.39.00.01

JESD-30 Code :

R-PDSO-N4

Output Current1-Max :

0.2A

ECCN Code :

EAR99

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Output Voltage1-Min :

2.3856V

Packaging :

Tape and Reel (TR)

Output Voltage 1 :

2.4V

JESD-609 Code :

e4

Input Voltage (Min) :

1.7V

Number of Terminations :

4

Terminal Form :

NO LEAD

Factory Lead Time :

9 Weeks

Dropout Voltage1-Max :

0.3V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
