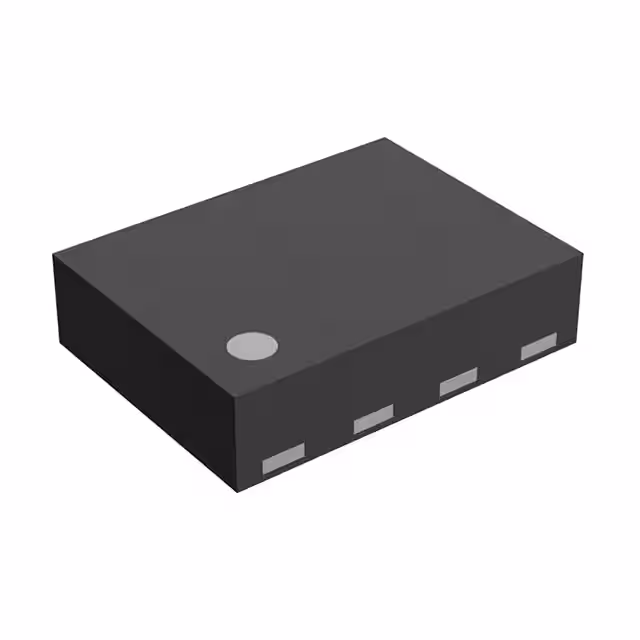

RP154L009B-E2

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-609 Code :

e4

Pin Count :

8

Output Voltage 1 :

3V

Output Voltage2-Max :

2.884V

Width :

1.2mm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8542.39.00.01

Pbfree Code :

No

RoHS Status :

RoHS Compliant

Output Voltage 2 :

2.8V

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Packaging :

Tape and Reel (TR)

Surface Mount :

yes

Output Voltage1-Min :

2.91V

Length :

1.6mm

Number of Functions :

1

Terminal Position :

Dual

Terminal Pitch :

0.4mm

Qualification Status :

Not Qualified

Input Voltage (Max) :

5.25V

Terminal Form :

NO LEAD

Output Voltage2-Min :

2.716V

Number of Outputs :

2

ECCN Code :

EAR99

JESD-30 Code :

R-PDSO-N8

Height Seated (Max) :

0.4mm

Output Current1-Max :

0.4A

Dropout Voltage1-Max :

0.29V

Input Voltage (Min) :

1.4V

Output Voltage1-Max :

3.09V

Number of Terminations :

8

Dropout Voltage2-Max :

0.3V

Factory Lead Time :

9 Weeks

Terminal Finish :

Palladium (Pd)

Output Current2-Max :

0.4A
