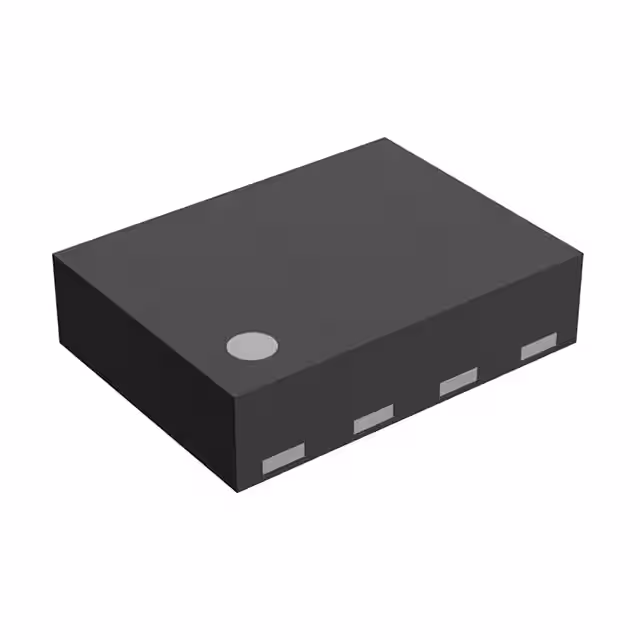

RP154L024A-E2

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Output Voltage1-Max :

3.399V

Terminal Finish :

Palladium (Pd)

HTS Code :

8542.39.00.01

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Functions :

1

Terminal Position :

Dual

Number of Outputs :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Surface Mount :

yes

Length :

1.6mm

JESD-30 Code :

R-PDSO-N8

Input Voltage (Min) :

1.4V

Input Voltage (Max) :

5.25V

Pbfree Code :

No

Terminal Form :

NO LEAD

Output Voltage1-Min :

3.201V

Output Voltage 2 :

3V

Packaging :

Tape and Reel (TR)

RoHS Status :

RoHS Compliant

Output Voltage2-Min :

2.91V

Dropout Voltage2-Max :

0.29V

Number of Terminations :

8

Height Seated (Max) :

0.4mm

Output Current2-Max :

0.4A

Terminal Pitch :

0.4mm

ECCN Code :

EAR99

Output Voltage 1 :

3.3V

Qualification Status :

Not Qualified

Output Current1-Max :

0.4A

Pin Count :

8

Dropout Voltage1-Max :

0.29V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Output Voltage2-Max :

3.09V

Width :

1.2mm

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Factory Lead Time :

9 Weeks

JESD-609 Code :

e4
