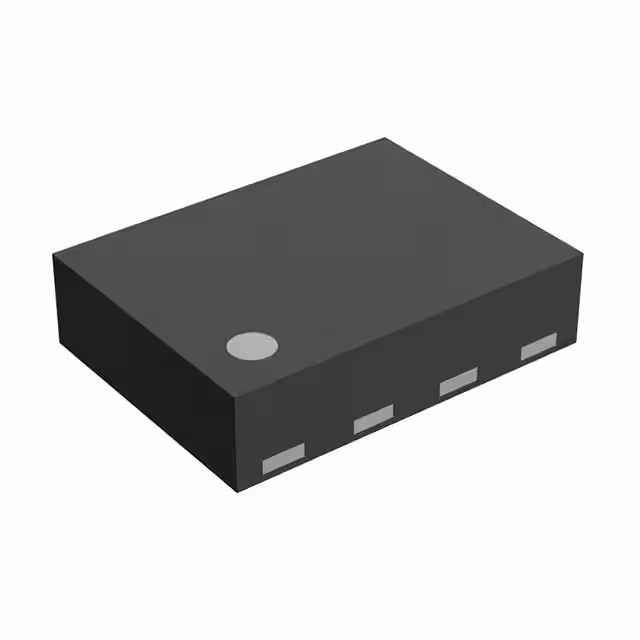

RP154L025A-E2

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Dropout Voltage1-Max :

0.29V

Terminal Form :

NO LEAD

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Voltage1-Max :

3.09V

Output Voltage2-Min :

2.91V

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

ECCN Code :

EAR99

Height Seated (Max) :

0.4mm

Output Voltage 2 :

3V

Length :

1.6mm

Width :

1.2mm

Terminal Finish :

Palladium (Pd)

Number of Terminations :

8

JESD-609 Code :

e4

HTS Code :

8542.39.00.01

RoHS Status :

RoHS Compliant

Input Voltage (Max) :

5.25V

Dropout Voltage2-Max :

0.29V

Output Current1-Max :

0.4A

Number of Functions :

1

Pbfree Code :

No

Qualification Status :

Not Qualified

Pin Count :

8

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Number of Outputs :

2

Output Current2-Max :

0.4A

Output Voltage2-Max :

3.09V

Output Voltage 1 :

3V

Packaging :

Tape and Reel (TR)

Output Voltage1-Min :

2.91V

Input Voltage (Min) :

1.4V

Terminal Pitch :

0.4mm

Terminal Position :

Dual

JESD-30 Code :

R-PDSO-N8

Factory Lead Time :

9 Weeks

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
