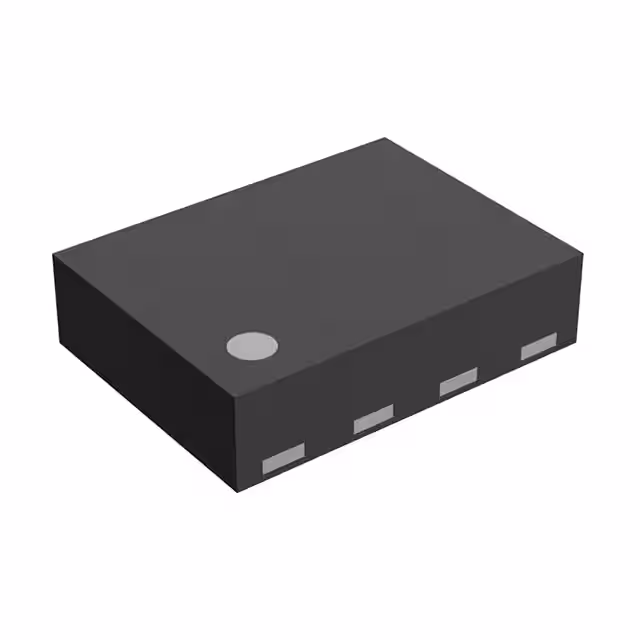

RP154L029B-E2

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Input Voltage (Min) :

1.4V

Packaging :

Tape and Reel (TR)

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dropout Voltage2-Max :

0.44V

Output Voltage 2 :

1.5V

Height Seated (Max) :

0.4mm

Pbfree Code :

No

ECCN Code :

EAR99

Output Voltage 1 :

1.5V

Terminal Position :

Dual

Number of Outputs :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Qualification Status :

Not Qualified

Terminal Pitch :

0.4mm

JESD-609 Code :

e4

Dropout Voltage1-Max :

0.44V

Number of Terminations :

8

Input Voltage (Max) :

5.25V

Output Voltage2-Max :

1.56V

Output Voltage1-Max :

1.56V

RoHS Status :

RoHS Compliant

Output Voltage2-Min :

1.44V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Length :

1.6mm

HTS Code :

8542.39.00.01

Terminal Form :

NO LEAD

Output Current2-Max :

0.4A

JESD-30 Code :

R-PDSO-N8

Pin Count :

8

Terminal Finish :

Palladium (Pd)

Surface Mount :

yes

Number of Functions :

1

Width :

1.2mm

Output Current1-Max :

0.4A

Output Voltage1-Min :

1.44V
