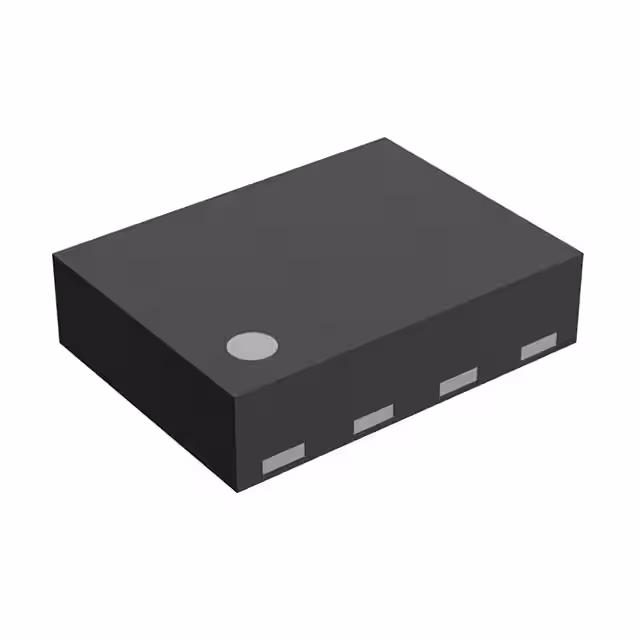

RP154L033B-E2

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Voltage1-Min :

1.74V

Terminal Finish :

Palladium (Pd)

Dropout Voltage1-Max :

0.39V

RoHS Status :

RoHS Compliant

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Packaging :

Tape and Reel (TR)

JESD-30 Code :

R-PDSO-N8

Dropout Voltage2-Max :

0.3V

Output Voltage 2 :

2.9V

Qualification Status :

Not Qualified

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Input Voltage (Min) :

1.4V

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Outputs :

2

Output Voltage2-Min :

2.813V

JESD-609 Code :

e4

Input Voltage (Max) :

5.25V

Output Voltage1-Max :

1.86V

ECCN Code :

EAR99

Output Voltage2-Max :

2.987V

Factory Lead Time :

9 Weeks

Width :

1.2mm

Output Voltage 1 :

1.8V

Pbfree Code :

No

HTS Code :

8542.39.00.01

Number of Functions :

1

Length :

1.6mm

Terminal Position :

Dual

Output Current2-Max :

0.4A

Terminal Form :

NO LEAD

Output Current1-Max :

0.4A

Terminal Pitch :

0.4mm

Number of Terminations :

8

Pin Count :

8

Height Seated (Max) :

0.4mm
