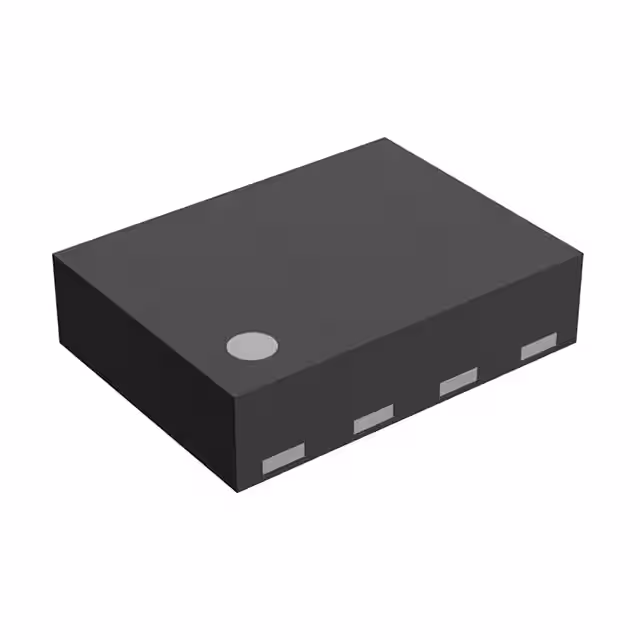

RP154L035B-E2

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Input Voltage (Min) :

1.4V

Height Seated (Max) :

0.4mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

8

Output Voltage2-Max :

2.781V

Output Voltage1-Min :

2.716V

Output Voltage2-Min :

2.619V

Dropout Voltage1-Max :

0.3V

Factory Lead Time :

9 Weeks

Terminal Pitch :

0.4mm

Number of Outputs :

2

Dropout Voltage2-Max :

0.3V

Peak Reflow Temperature (Cel) :

260

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

JESD-609 Code :

e4

Terminal Position :

Dual

ECCN Code :

EAR99

Input Voltage (Max) :

5.25V

RoHS Status :

RoHS Compliant

Output Voltage 2 :

2.7V

Output Voltage1-Max :

2.884V

Terminal Form :

NO LEAD

Surface Mount :

yes

Output Voltage 1 :

2.8V

Terminal Finish :

Palladium (Pd)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

8

Number of Functions :

1

JESD-30 Code :

R-PDSO-N8

Pbfree Code :

yes

Packaging :

Tape and Reel (TR)

Length :

1.6mm

HTS Code :

8542.39.00.01

Width :

1.2mm
