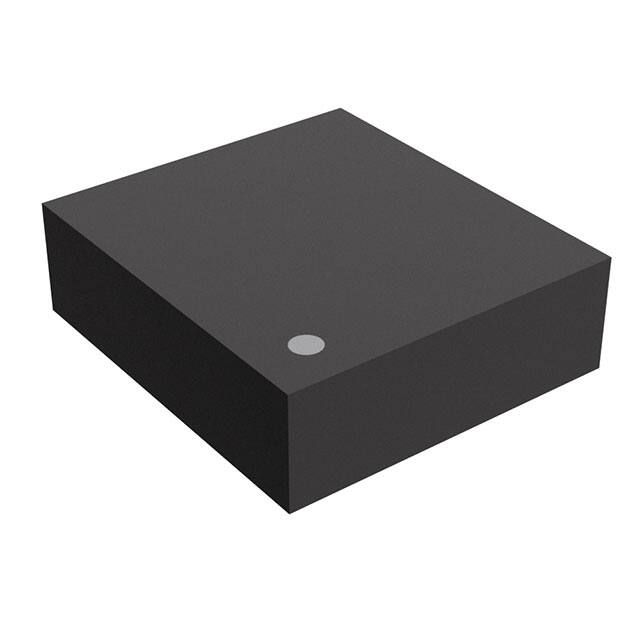

RP500K124A-TR

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - DC DC Switching Regulators

RoHS Status :

RoHS Compliant

Terminal Finish :

Gold (Au)

Package / Case :

6-UFDFN Exposed Pad

Output Configuration :

Positive

Length :

2mm

Voltage - Output (Min/Fixed) :

1.2V

Factory Lead Time :

9 Weeks

Input Voltage-Nom :

3.6V

Pbfree Code :

No

Current - Output :

900mA

Function :

Step-Down

Packaging :

Tape and Reel (TR)

Number of Terminations :

6

Terminal Form :

NO LEAD

Control Technique :

PULSE WIDTH MODULATION

ECCN Code :

EAR99

Terminal Pitch :

0.5mm

Output Voltage :

1.2V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Analog IC - Other Type :

SWITCHING REGULATOR

Synchronous Rectifier :

yes

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Height Seated (Max) :

0.6mm

Qualification Status :

Not Qualified

Control Mode :

CURRENT-MODE

Output Type :

FIXED

JESD-609 Code :

e4

Terminal Position :

Dual

Additional Feature :

IT CAN ALSO OPERATE WITH PFM CONTROL TECHNIQUE

Number of Outputs :

1

Voltage - Input (Max) :

5.5V

JESD-30 Code :

R-PDSO-N6

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Topology :

Buck

Frequency - Switching :

1.2MHz

Voltage - Input (Min) :

2.55V

Operating Temperature :

-40°C~85°C TA
