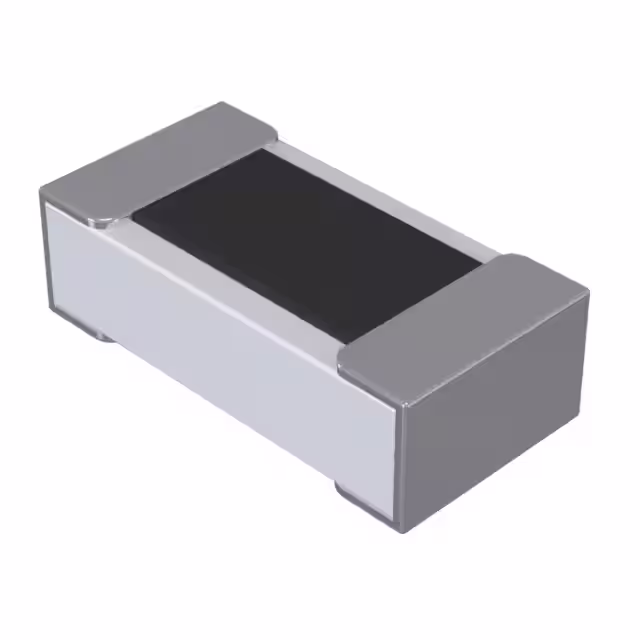

RP73PF1E182KBTD

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Chip Resistor - Surface Mount

Composition :

Thin Film

Number of Terminations :

2

Packaging :

Tape and Reel

Power Rating(s) :

0.1 (1/10)(W)

Wire Size :

24 to 20, 24 AWG

Case Style :

Epoxy

Construction :

RECTANGULAR

Product Type :

Thin Film Resistors

Height :

350 µm

Length :

1 mm

Product Category :

Thin Film Resistors - SMD

Resistance :

182000(ohm)

Brand :

TE Connectivity / Holsworthy

Supplier Device Package :

0402

Height - Seated (Max) :

0.014 (0.35mm)

Tolerance :

0.1 %

Minimum Operating Temperature :

- 55 C

Military Standard :

Not Required

Product Diameter (mm) :

Not Required(mm)

Size / Dimension :

0.039 L x 0.020 W (1.00mm x 0.50mm)

Failure Rate :

Not Required

Product Status :

Active

Operating Temperature :

-40 to 105 °C

Lead Spacing (nom) :

Not Required(mm)

Series :

RP73P

Max Operating Temperature :

155 °C

Package Type :

SMD

Min Operating Temperature :

-55 °C

Anti-Surge :

No

Product Depth (mm) :

0.5(mm)

Anti-Sulfurated :

No

Features :

-

Case Size :

0402

Number of Terminals :

2

Package / Case :

0402

Operating Temp Range :

-55C to 155C

Technology :

Thin Film

Type :

Thin Film

Voltage Rating (DC) :

50 V

Product Height (mm) :

0.3(mm)

Maximum Operating Temperature :

+ 155 C

Mounting :

Cable Mount

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Voltage Rating :

50 V

Base Product Number :

RP73PF1E

Tolerance (+ or -) :

0.1%

Termination Method :

Crimp

Width :

0.5 mm

Body Orientation :

Straight

Product :

Precision Resistors Thin Film SMD

Contact Plating :

Gold

Temperature Coefficient :

±25(ppm/°C)

Product Length :

12.17 mm

Manufacturer :

TE Connectivity

Current Sensing :

No

RoHS :

Non-Compliant

Temperature Range @ Derated Power :

70 TO 155

Product Length (mm) :

1(mm)

Subcategory :

Resistors

Power Rating :

100 mW

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Material :

Phosphor Bronze

Mounting Style :

PCB Mount

Lifecycle Status :

Production (Last Updated: 4 days ago)

Power (Watts) :

0.1W, 1/10W

Gender :

Receptacle

Termination Style :

Pad
