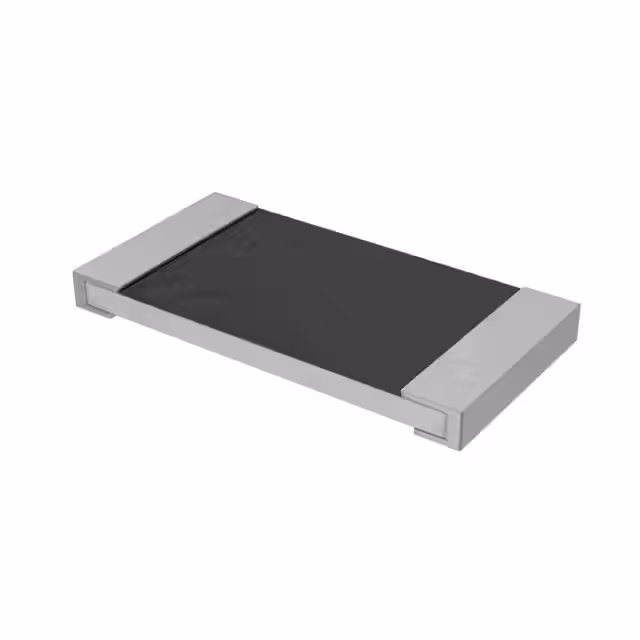

RPC2010FT825K

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Size Code :

2010

Application :

Automotive Grade

Resistance :

825 kOhms

Terminal Shape :

WRAPAROUND

Power Rating :

750 mW (3/4 W)

Packing Method :

TR, PLASTIC, 7 INCH

Rated Power Dissipation (P) :

0.75

Composition :

Thick Film

Package / Case :

2010 (5025 Metric)

Power (Watts) :

0.75W, 3/4W

JESD-609 Code :

e3

Ratings :

AEC-Q200

Working Voltage :

400

Series :

RPC

Size / Dimension :

0.197" L x 0.098" W (5.00mm x 2.50mm)

Supplier Device Package :

2010

Package Width :

2.5

Reference Standard :

AEC-Q200

Package :

Digi-Reel?

Product Status :

Active

Temperature Coefficient :

±100ppm/°C

Package Length :

5

Minimum Operating Temperature :

- 55 C

Mounting Feature :

Surface Mount

Technology :

METAL GLAZE/THICK FILM

Maximum Operating Temperature :

+ 155 C

Number of Terminals :

2

Operating Temperature :

-55°C ~ 155°C

Features :

Automotive AEC-Q200, Pulse Withstanding

Resistor Type :

FIXED RESISTOR

Package Height :

0.55

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Rated Temperature :

70

Height :

0.55 mm

Width :

2.5 mm

Failure Rate :

-

Product Type :

Thick Film Resistors

Number of Terminations :

2

Termination Style :

SMD/SMT

Height - Seated (Max) :

0.026" (0.65mm)

Length :

5 mm

Tolerance :

±1%

Package Shape :

RECTANGULAR PACKAGE

Mounting Style :

PCB Mount

Subcategory :

Resistors

Voltage Rating :

400 V

Construction :

Chip
