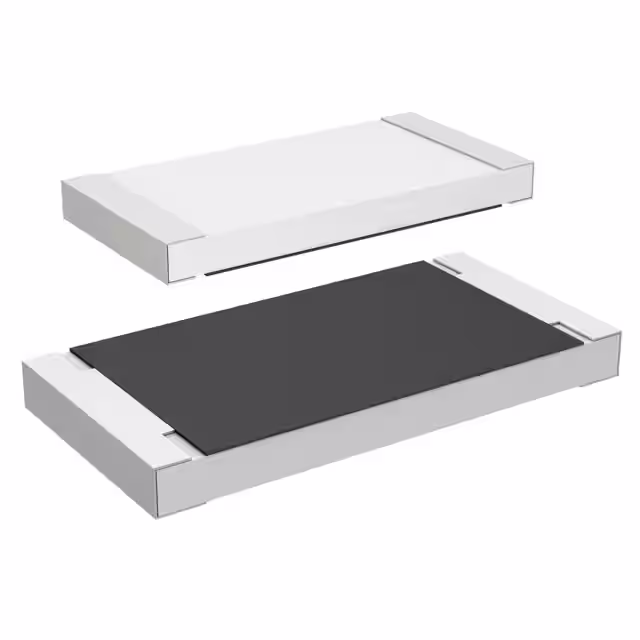

RPC63682JTE

Manufacturer :

Kamaya

Product Category :

Chip Resistor - Surface Mount

Brand :

Kamaya

Resistor Type :

FIXED RESISTOR

Power (Watts) :

1W

Package / Case :

2512 (6432 Metric)

Package Length :

6.3

Mounting Feature :

Surface Mount

Rated Power Dissipation (P) :

1

Composition :

Thick Film

Manufacturer :

Kamaya

Resistance :

6.8 kOhms

Package :

Tape and Reel (TR)

Package Height :

0.55

Operating Temperature :

-55°C ~ 155°C

Number of Terminations :

2

Size Code :

2512

Series :

RPC

Temperature Coefficient :

±100ppm/°C

Mounting Style :

PCB Mount

Package Shape :

RECTANGULAR PACKAGE

Packing Method :

TR, Embossed, 7 Inch

Construction :

RECTANGULAR

Height - Seated (Max) :

0.028" (0.70mm)

Features :

Automotive AEC-Q200, Pulse Withstanding

Supplier Device Package :

2512

Technology :

METAL GLAZE/THICK FILM

Additional Feature :

RATED AC VOLTAGE (V): 200

Size / Dimension :

0.248" L x 0.126" W (6.30mm x 3.20mm)

Terminal Shape :

WRAPAROUND

JESD-609 Code :

e3

Tolerance :

±5%

Working Voltage :

200

Failure Rate :

-

Number of Terminals :

2

Rated Temperature :

70

Subcategory :

Resistors

Package Width :

3.2

Product Category :

Thick Film Resistors - SMD

Product Type :

Thick Film Resistors

Terminal Finish :

Tin

Product Status :

Active
