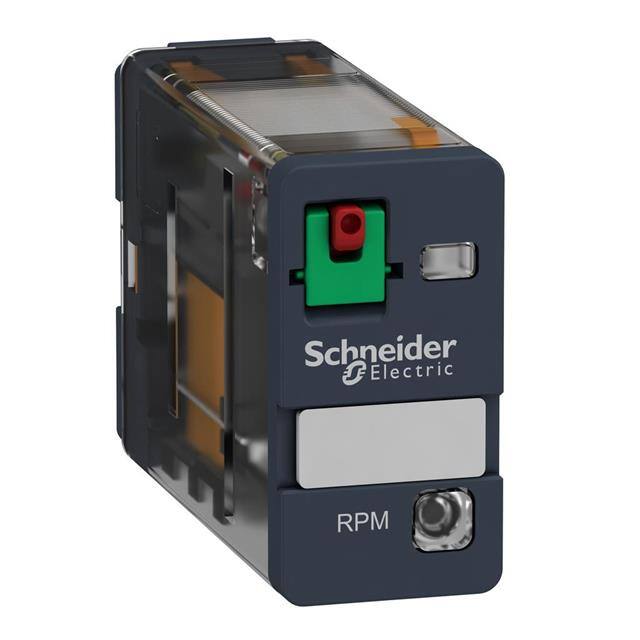

RPM12B7
Or copy the link below:
- Mfr.Part #
- RPM12B7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, POWER PLUG-IN RELAY, 15
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Coil Termination :
- Plug Pin
- Width :
- 14
- Manufacturer :
- Schneider Electric
- Number of contacts as normally open contact :
- 0
- Contact Termination :
- Plug Pin
- Seal Rating :
- -
- Coil Voltage :
- 24VAC
- Package :
- Box
- Relay Type :
- GENERAL PURPOSE
- Product Category :
- Industrial Relays
- Operate Time :
- 20 ms
- Features :
- Lighted Indicator, Test Button
- With detachable clamps :
- yes
- Type of electric connection :
- Plug-in connection
- Number of Poles :
- 1
- Coil Resistance :
- 177Ohm
- Contact Configuration :
- SPDT
- Mounting Type :
- Socketable
- Contact Material :
- Silver Nickel
- Contact Rating (Current) :
- 15 A
- Number of contacts as normally closed contact :
- 0
- Degree of protection (IP) :
- IP40
- Application :
- Power
- Number of contacts as change-over contact :
- 1
- RoHS :
- Details
- Nominal current :
- 15
- Mounting Style :
- Socket
- Material contact :
- Other
- Coil Type :
- -
- Coil Current :
- 135.6 mA
- Switching Current :
- 15 A @ 250 V ac, 15 A @ 28 V dc
- Operating Temperature :
- -40°C ~ 55°C
- Type :
- Harmony Relay
- Height :
- 27mm
- Product Type :
- Industrial Relays
- Rated control supply voltage at AC 60 Hz :
- 24 - 24
- Contact Current :
- 15A
- Voltage type for actuating :
- AC
- Current Rating :
- 15 A
- Series :
- RPM
- Coil Power :
- 1.6W
- Rated control supply voltage at AC 50 Hz :
- 24 - 24
- Brand :
- Schneider Electric
- Must Operate Voltage :
- 19.2 VAC
- Coil Insulation :
- -
- Subcategory :
- Relays
- Must Release Voltage :
- 3.6 VAC
- Product Status :
- Active
- Contact Current Rating :
- 15 A
- Release Time :
- 20 ms
- Termination Style :
- Plug In
- Length :
- 14mm
- Product :
- Power Relays
- Depth :
- 43mm
- Material of contact surface :
- Other
- Contact Form :
- SPST (1 Form A)
- IP Rating :
- IP40
- Switching Voltage :
- 250 VAC, 28 VDC
- Datasheets
- RPM12B7
