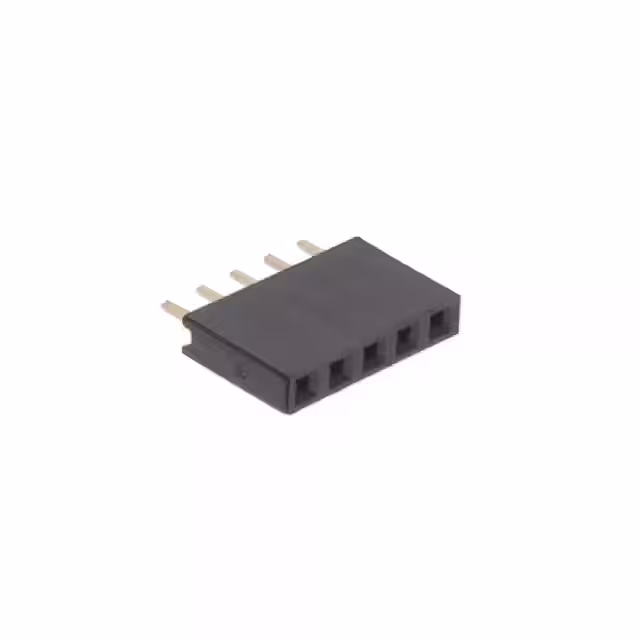

RS1-05-G
Or copy the link below:
- Mfr.Part #
- RS1-05-G
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- RECEPTACLE STRIP 5P 2.54MM PITCH
- Stock
- 1,111
- In Stock ：
- 1,111
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Receptacles, Female Sockets
- Voltage - Rated :
- 250VAC
- Contact Finish Thickness - Mating :
- Flash
- RoHS Status :
- ROHS3 Compliant
- Series :
- RS1
- Style :
- Board to Board
- Additional Feature :
- ROHS COMPIANT
- Operating Temperature :
- -40°C~105°C
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number Of PCB Rows :
- 1
- Contact Finish - Mating :
- Gold
- Connector Type :
- Receptacle
- Pitch - Mating :
- 0.100 2.54mm
- Contact Shape :
- Square
- Fastening Type :
- Push-Pull
- Factory Lead Time :
- 9 Weeks
- Body Breadth :
- 0.094 inch
- PCB Contact Pattern :
- RECTANGULAR
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Reference Standard :
- UL, CSA
- Number of Positions :
- 5
- Contact Resistance :
- 20mOhm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Gender :
- FEMALE
- Reliability :
- COMMERCIAL
- Mounting Type :
- Through Hole
- Contact Length - Post :
- 0.118 3.00mm
- ECCN Code :
- EAR99
- Current Rating (Amps) :
- 3A
- Insulation Color :
- Black
- JESD-609 Code :
- e4
- Number of Rows :
- 1
- Termination :
- Solder
- Contact Type :
- Forked
- Insulation Height :
- 0.335 8.51mm
- Datasheets
- RS1-05-G
1 Rows Receptacle Solder Brass Through Hole Bulk Gold Polybutylene Terephthalate (PBT), Glass Filled 5 Positions Forked
RS1-05-G Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the RS1 Series.Among other features are ROHS COMPIANT, to name only a few.It operates at an operating temperature of -40°C~105°C.
RS1-05-G Features
RS1 series
RS1-05-G Applications
There are a lot of Adam Tech
RS1-05-G Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
