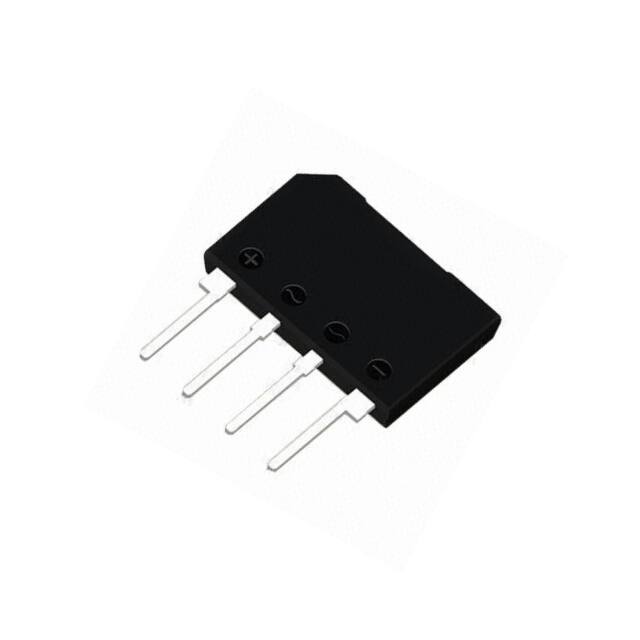

RS603

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Supplier Device Package :

RS-6

Technology :

Standard

Operating Temperature Classification :

Military

Package Type :

Case RS-6

Mounting Type :

THROUGH-HOLE

Mounting Style :

Through Hole

Diode Type :

Single Phase

Number of Elements :

1

RMS Voltage (Max) :

140(V)

Voltage - Peak Reverse (Max) :

200 V

Voltage :

Reverse Voltage Vr - 200V

Mounting :

Through Hole

Product Status :

Active

Current - Reverse Leakage @ Vr :

200 nA @ 200 V

Termination Style :

Through Hole

Package / Case :

RS-6

Avg. Forward Curr (Max) :

6(A)

Manufacturer :

Rectron

Current - Average Rectified (Io) :

6 A

Brand :

Rectron

Rev Curr :

0.5(mA)

Packaging :

Case - RS-6

Maximum Operating Temperature :

+ 150 C

Tolerance :

Recovery Time - < 60Hz

RoHS :

Y

Pin Count :

4

Package :

Tube

Rad Hardened :

No

Width :

7.1 mm

Operating Temperature :

-55°C ~ 150°C (TJ)

Vf - Forward Voltage :

1.1 V

Operating Temp Range :

-55C to 150C

Voltage - Forward (Vf) (Max) @ If :

1.05 V @ 6 A

Height :

19.8 mm

Subcategory :

Diodes and Rectifiers

Max Surge Current :

150 A

Product Type :

Bridge Rectifiers

Series :

-

Phase Type :

Single Phase

Type :

Single Phase Bridge

Forward Voltage :

1.05(V)

Length :

23.7 mm

Peak Non-Repetitive Surge Current (Max) :

150(A)

Peak Rep Rev Volt :

200(V)

Minimum Operating Temperature :

- 55 C

Product Category :

Bridge Rectifiers
