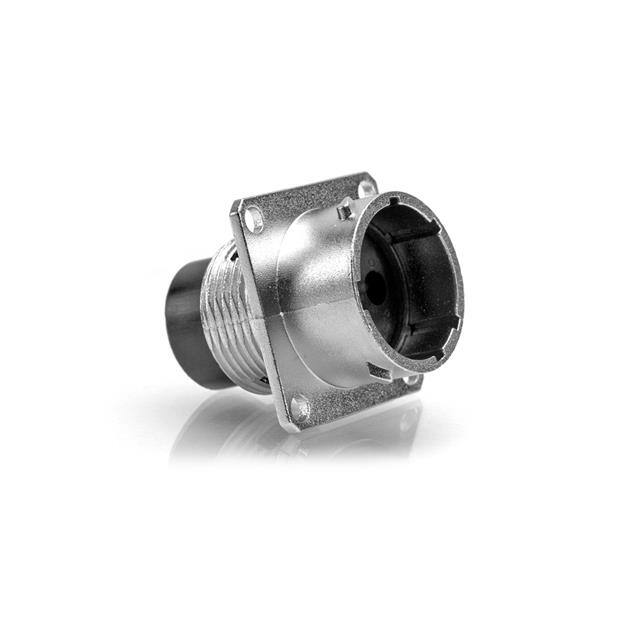

RT00147PNH
Or copy the link below:
- Mfr.Part #
- RT00147PNH
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- RECEPTACLE, SQUARE FLANGE, 7 POS
- Stock
- 98
- In Stock ：
- 98
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Mating Style :
- Threaded
- Flammability Rating :
- UL 94 V-0
- Includes :
- -
- Shell Size - Insert :
- 14-7
- Tradename :
- Ecomate
- Housing Color :
- Silver
- Product Type :
- Standard Circular Connector
- Shielding :
- Shielded
- Voltage Rating :
- 500 VAC/DC
- Contact Gender :
- Pin (Male)
- Wire Gauge :
- 24 AWG to 14 AWG
- Brand :
- Amphenol SINE Systems
- Current Rating :
- 13 A
- Note :
- Contacts Not Included
- Contact Shape :
- Circular
- Housing Gender :
- FEMALE
- Manufacturer :
- Amphenol
- Fastening Type :
- Bayonet Lock
- Material Flammability Rating :
- UL94 V-0
- Mating Cycles :
- 500 Cycle
- Connector Type :
- Receptacle Housing
- Insert Material :
- Thermoplastic
- Mounting Feature :
- Flange
- Orientation :
- N (Normal)
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Shell Size :
- 14
- Shell Finish :
- Nickel
- Operating Temperature :
- -40°C ~ 105°C
- Features :
- -
- Termination Style :
- CABLE
- Shell Plating :
- Nickel
- Contact Plating :
- -
- Mounting Type :
- Panel Mount
- Product :
- Receptacles
- Product Category :
- Standard Circular Connector
- Type :
- For Male Pins
- Accessory Type :
- -
- Series :
- ecomate? RM
- Contact Size :
- 16
- Package :
- Bag
- Mounting Style :
- Panel
- Shell Style :
- Square Flange
- Number of Positions :
- 7
- Subcategory :
- Circular Connectors
- Shell Size, MIL :
- -
- Shell Material :
- ZINC ALLOY
- RoHS :
- Details
- Product Status :
- Active
- Mounting Angle :
- Straight
- IP Rating :
- IP67
- Contact Type :
- Crimp
- Contact Material :
- -
- Datasheets
- RT00147PNH
Receptacle Housing Zinc Alloy Panel Mount 7 Positions Nickel N (Normal) Bayonet Lock
RT00147PNH Overview
Currently, it is packaged in Receptacle Housing.The mounting type of the device is Panel Mount.A product of the ecomate? RM Series, it belongs to the range of products of that series.-40°C ~ 105°C Operating Temperature is the default operating temperature for the device.
RT00147PNH Features
ecomate? RM series
RT00147PNH Applications
There are a lot of Amphenol Sine Systems Corp
RT00147PNH Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
