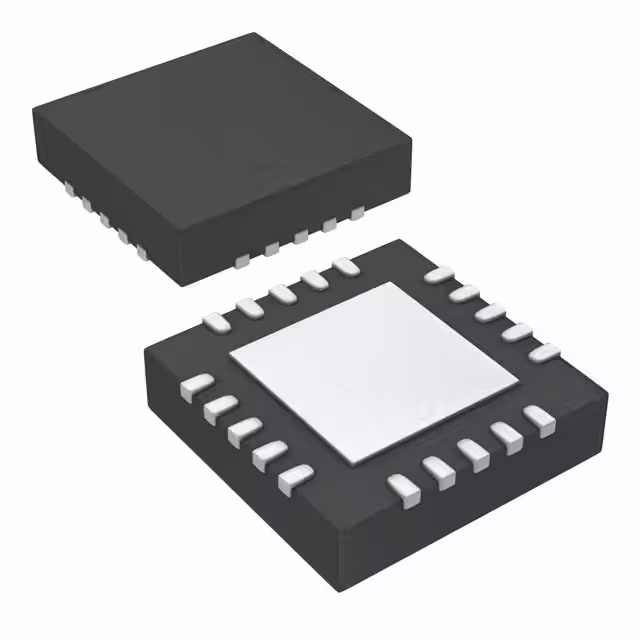

RT6203BLGQW

Manufacturer :

Richtek

Product Category :

Voltage Regulators - DC DC Switching Regulators

Function :

Step-Down

Output Type :

Adjustable

Minimum Operating Temperature :

- 40 C

Output Configuration :

Positive

Number of Outputs :

1

Supplier Device Package :

20-WQFN (4x4)

Current - Output :

5A

Voltage - Output (Max) :

8V

Frequency - Switching :

700kHz

Maximum Operating Temperature :

+ 85 C

Voltage - Input (Max) :

18V

Product Status :

Active

Switching Frequency :

700 kHz

Quiescent Current :

550 uA

Output Voltage :

800 mV to 8 V

Mounting Style :

SMD/SMT

Mounting Type :

Surface Mount

Topology :

Buck

Voltage - Output (Min/Fixed) :

0.8V

Synchronous Rectifier :

yes

Output Current :

5 A

Package / Case :

20-WFQFN Exposed Pad

Operating Temperature :

-40°C ~ 85°C (TA)

Series :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Voltage - Input (Min) :

4.5V
