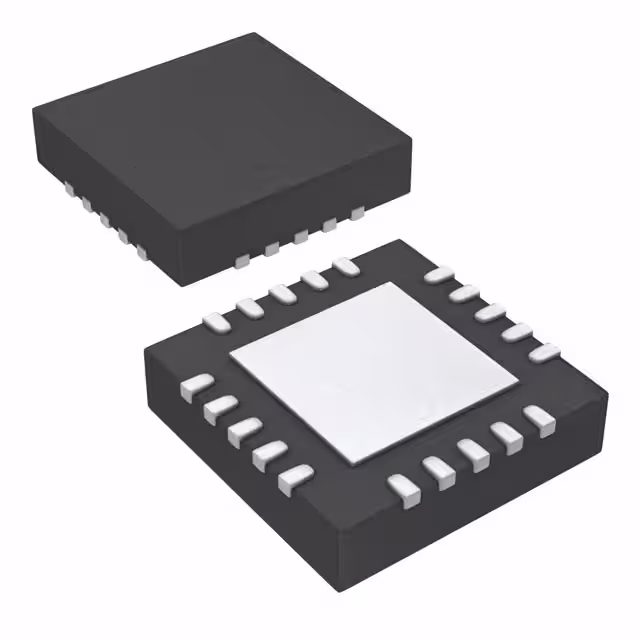

RT6543AGQW

Manufacturer :

Richtek

Product Category :

DC DC Switching Controllers

Output Configuration :

Positive

Synchronous Rectifier :

yes

Function :

Step-Down

Duty Cycle (Max) :

-

Output Phases :

1

Clock Sync :

No

Voltage - Supply (Vcc/Vdd) :

3V ~ 24V

Output Current :

-

Maximum Operating Temperature :

+ 125 C

Control Features :

Current Limit, Dead Time Control, Enable, Frequency Control, Phase Control, Power Good, Soft Start

Topology :

Buck

Product Status :

Active

Switching Frequency :

Adjustable

Serial Interfaces :

-

Minimum Operating Temperature :

- 40 C

Package / Case :

20-WFQFN Exposed Pad

Number of Outputs :

1

Operating Temperature :

-40°C ~ 125°C (TJ)

Output Voltage :

Programmable

Output Type :

Transistor Driver

Supplier Device Package :

20-WQFN (3x3)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Input Voltage :

3 V to 24 V

Mounting Style :

SMD/SMT

Series :

-

Frequency - Switching :

400kHz, 600kHz, 800kHz

Mounting Type :

Surface Mount
