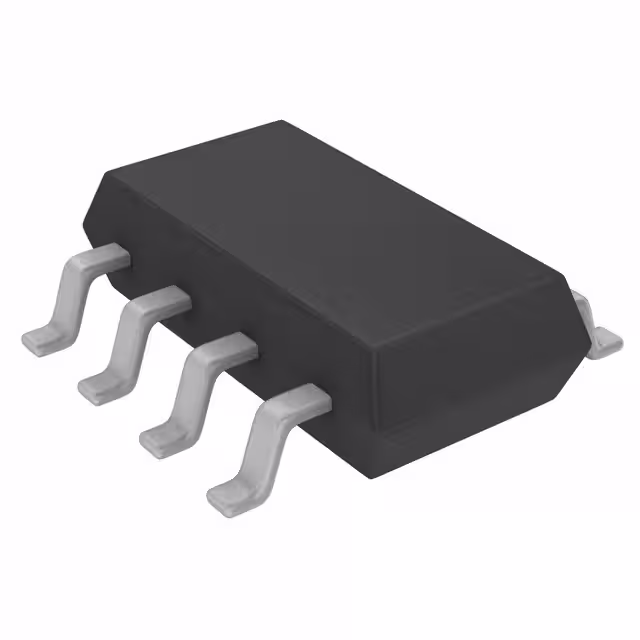

RT9302GJ8

Manufacturer :

Richtek

Product Category :

LED Drivers

Automotive :

No

Number of Outputs :

3

Typical Operating Supply Voltage (V) :

3.3|5

Supplier Package :

TSOT-23

EU RoHS :

Compliant

Maximum Operating Supply Voltage (V) :

5.5

Dimming :

PWM

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

ECCN (US) :

EAR99

Package Length :

3.1(Max)

PCB changed :

8

Mounting :

Surface Mount

Applications :

Backlight

Number of Segments :

3

Maximum Power Dissipation (mW) :

455

Voltage - Supply (Min) :

2.8V

Voltage - Supply (Max) :

5.5V

Standard Package Name :

SOT

Package Height :

0.9(Max)

Minimum Operating Supply Voltage (V) :

2.8

Internal Switch(s) :

No

Mounting Type :

Surface Mount

Series :

-

Current - Output / Channel :

20mA

Package / Case :

SOT-23-8 Thin, TSOT-23-8

Subcategory :

Driver ICs

Frequency :

1MHz

PPAP :

No

Operating Temperature :

-40°C ~ 85°C (TA)

Supplier Device Package :

TSOT-23-8

Product Type :

LED Lighting Drivers

Package Width :

1.8(Max)

Voltage - Output :

-

Topology :

Constant Current

Pin Count :

8

Type :

Linear

Minimum Operating Temperature (°C) :

-40

Maximum Operating Temperature (°C) :

85

Product Status :

Active
