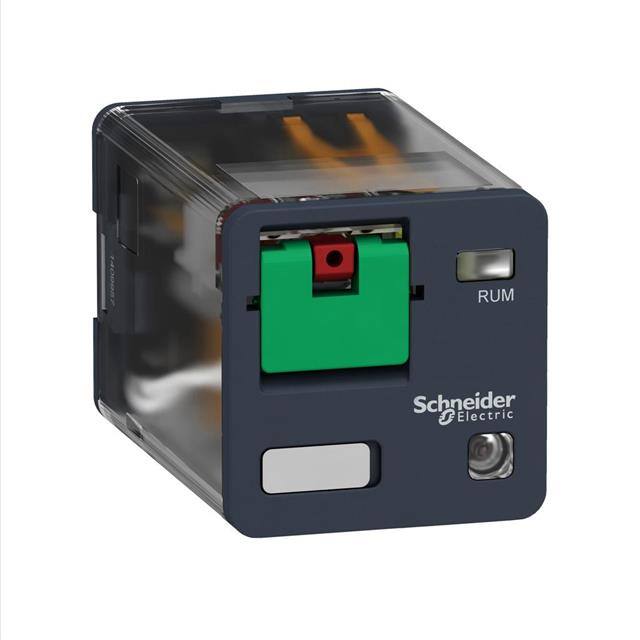

RUMF32B7

Manufacturer :

Schneider Electric

Product Category :

Power Relays, Over 2 Amps

Number of contacts as normally open contact :

0

Product Status :

Active

Termination Style :

Plug In

Contact Rating (Current) :

10 A

Rated control supply voltage at AC 60 Hz :

24 - 24

Must Release Voltage :

3.6 VAC

Degree of protection (IP) :

IP40

Mounting Style :

Socket

Operate Time :

20 ms

Series :

Harmony

Voltage type for actuating :

AC/DC

Features :

Lighted Indicator, Test Button

Package :

Box

Mounting Type :

Socketable

Coil Voltage :

24VAC

Product :

Industrial Relays

Must Operate Voltage :

19.2 VAC

Contact Termination :

Quick Connect

Release Time :

20 ms

Operating Temperature :

-40°C ~ 55°C

Coil Current :

333.3 mA

Seal Rating :

-

Number of contacts as normally closed contact :

0

Number of contacts as change-over contact :

3

Relay Type :

GENERAL PURPOSE

Contact Current Rating :

10 A

Coil Resistance :

72 Ohms

Height :

35.4

Width :

35

Coil Type :

Non Latching

Rated control supply voltage at AC 50 Hz :

24 - 24

Contact Form :

3PDT (3 Form C)

Type of electric connection :

Flat plug-in connection

With detachable clamps :

No

Coil Insulation :

-

Depth :

53

Contact Material :

Silver Nickel (AgNi)

Switching Voltage :

250VAC, 28VDC - Max
