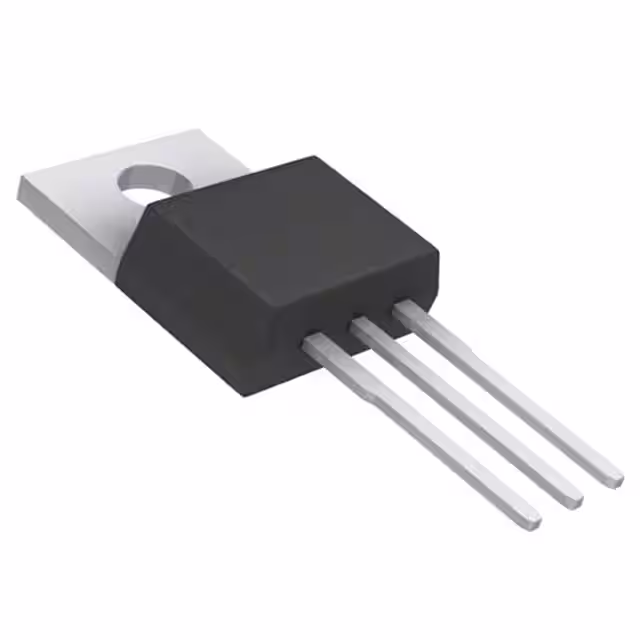

RX3L07BGNC16

Manufacturer :

ROHM Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

FET Type :

N-Channel

Mounting Style :

Through Hole

Rise Time :

32 ns

Drain to Source Voltage (Vdss) :

60 V

Subcategory :

MOSFETs

Product Status :

Active

Qualification :

-

Product Category :

MOSFET

Maximum Operating Temperature :

+ 150 C

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Power Dissipation :

96W

Power Dissipation (Max) :

96W (Ta)

Minimum Operating Temperature :

- 55 C

Pin Count :

3

Channel Type :

N Channel

Transistor Type :

Power MOSFET

Current - Continuous Drain (Id) @ 25°C :

70A (Ta)

Package :

Cut Tape (CT)

Operating Temperature :

150°C (TJ)

Vgs(th) (Max) @ Id :

2.5V @ 50μA

RoHS :

Details

Manufacturer :

Rohm Semiconductor

Configuration :

Single

Continuous Drain Current Id :

70A

Package / Case :

TO-220-3

Product Type :

MOSFET

Supplier Device Package :

TO-220AB

Packaging :

Tube

Transistor Polarity :

N-Channel

Channel Mode :

Enhancement

Gate Charge (Qg) (Max) @ Vgs :

55 nC @ 10 V

Series :

-

Brand :

Rohm Semiconductor

Mounting Type :

Through Hole

FET Feature :

-

Rds On (Max) @ Id, Vgs :

7.2mOhm @ 70A, 10V

Vgs (Max) :

±20V

Number of Elements per Chip :

1

Number of Channels :

1 Channel

Input Capacitance (Ciss) (Max) @ Vds :

2600 pF @ 30 V

Package Type :

TO-220AB
