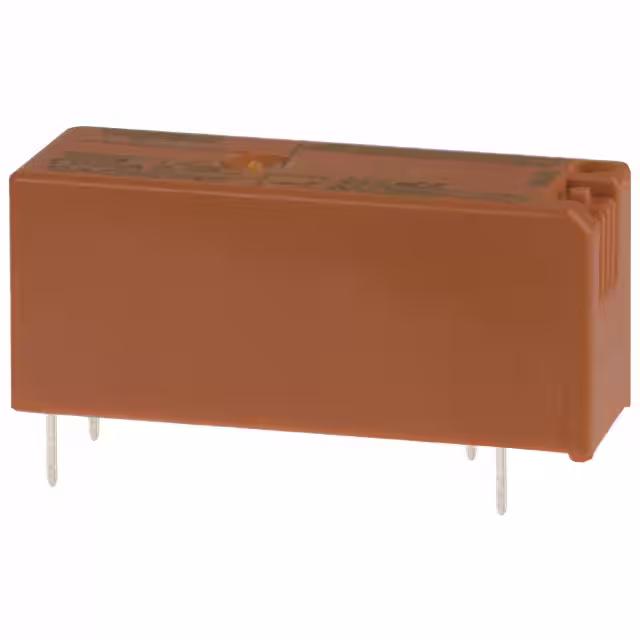

RY211048
Or copy the link below:
- Mfr.Part #
- RY211048
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 8A 48V
- Stock
- 22,591
- In Stock ：
- 22,591
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- ELV :
- Compliant
- Operating Temperature :
- -40°C ~ 70°C
- Switching Voltage :
- 400VAC - Max
- Coil Current :
- 5.1mA
- REACH SVHC :
- No SVHC
- RoHS :
- Compliant
- Packaging :
- Bulk
- Switching Current :
- 8A
- Length :
- 28.4988 mm
- Product Status :
- Active
- Mounting Style :
- Through Hole
- Throw Configuration :
- SPDT
- Power Rating :
- 245 mW
- Lifecycle Status :
- Production (Last Updated: 2 days ago)
- Seal Rating :
- Sealed - Flux Protection
- Voltage Rating (DC) :
- 48 V
- Manufacturer :
- Agastat
- Radiation Hardening :
- No
- Termination :
- PC Pin, PCB
- Series :
- RY, SCHRACK
- Release Time :
- 5ms
- Must Release Voltage :
- 4.8 VDC
- Weight :
- 7.994566 g
- Package :
- Bulk
- Application :
- Power
- Type :
- Standard
- Contact Form :
- SPDT (1 Form C)
- Number of Poles :
- 1
- Coil Type :
- Non Latching
- Coil Power :
- 245 mW
- Contact Material :
- Silver Nickel (AgNi)
- Height :
- 12.2936 mm
- Min Operating Temperature :
- -40 °C
- Schedule B :
- 8536410050/8536410050/8536410050/8536410050/8536410050, 8536490050
- Current Rating :
- 8 A
- Termination Style :
- PC Pin
- Product :
- Power Relays
- Features :
- Sealed - Flux Protection
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Coil Insulation :
- -
- Terminal Type :
- Through Hole
- Base Product Number :
- RY21
- Max Voltage Rating (AC) :
- 400 V
- Max Current Rating :
- 8 A
- Relay Type :
- GENERAL PURPOSE
- Coil Voltage (DC) :
- 48 V
- Turn Off Voltage (Min) :
- 4.8 VDC
- Max Operating Temperature :
- 70 °C
- Must Operate Voltage :
- 33.6 VDC
- Depth :
- 10.1 mm
- Contact Configuration :
- SPDT
- Width :
- 10.1 mm
- Number of Pins :
- 5
- Turn On Voltage (Max) :
- 33.6 VDC
- Coil Voltage :
- 48VDC
- Contact Rating (Current) :
- 8A
- Approvals :
- CSA, UL, VDE
- Contact Termination :
- Solder Pin
- Dropout Voltage :
- 4.8 V
- Mounting Type :
- Through Hole
- Contact Voltage Rating (AC) :
- 250 V
- Coil Resistance :
- 9.4 kOhms
- Contact Current Rating :
- 8 A
- Mount :
- PCB, Through Hole
- Operate Time :
- 9ms
- Voltage Rating (AC) :
- 400 V
- Datasheets
- RY211048
RY211048 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
