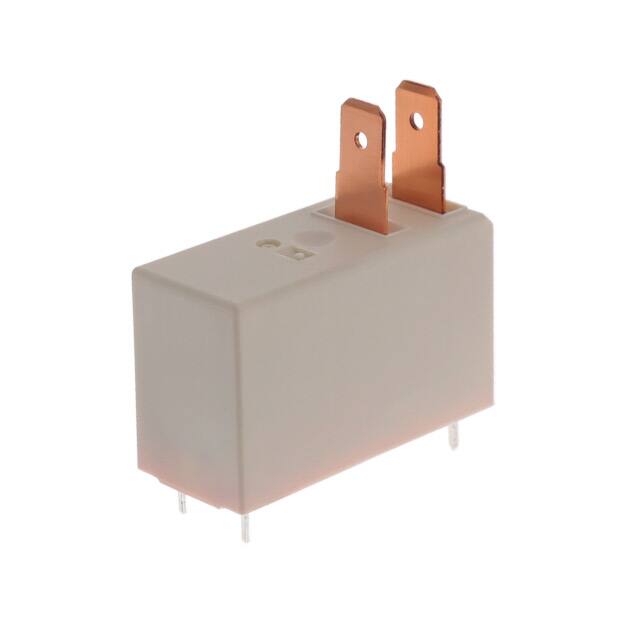

RZF1-1A4-L006
Or copy the link below:
- Mfr.Part #
- RZF1-1A4-L006
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 16A 6V
- Stock
- 385
- In Stock ：
- 385
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Base Product Number :
- RZF1
- Type :
- Standard
- Operate Time :
- 8 ms
- Release Time :
- 6 ms
- Coil Resistance :
- 66.6 Ohms
- Must Release Voltage :
- 0.6 Vdc
- Must Operate Voltage :
- 4.2 VDC
- Height :
- 17.7 mm
- RoHS :
- Details
- Product :
- Power Relays
- Repetitive Peak Reverse Voltage :
- 30
- Features :
- -
- Relay Type :
- GENERAL PURPOSE
- Contact Material :
- Silver Nickel (AgNi)
- Contact Termination :
- Solder Pin
- Mounting Style :
- Panel Mount
- Series :
- RZF
- Coil Insulation :
- Class F
- Seal Rating :
- Sealed - Flux Protection
- Manufacturer :
- TE Connectivity
- Coil Voltage :
- 6 VDC
- Subcategory :
- Relays
- Product Type :
- General Purpose Relays
- Diode Configuration :
- Dual Common Cathod
- Termination Style :
- PC Pin, Quick Connect - 0.187 (4.7mm)
- Coil Current :
- 90.1 mA
- Coil Type :
- Non-Latching
- Contact Form :
- SPST (1 Form A)
- Width :
- 12.6 mm
- Product Category :
- General Purpose Relays
- Brand :
- TE Connectivity / Schrack
- Contact Rating (Current) :
- 16 A
- Packaging :
- Tube
- Product Status :
- Active
- Package :
- Tube
- Operating Temperature :
- -40°C ~ 85°C
- Switching Voltage :
- 400 VAC
- Mounting Type :
- Through Hole
- Length :
- 28.9 mm
- Contact Current Rating :
- 16 A
- Datasheets
- RZF1-1A4-L006
