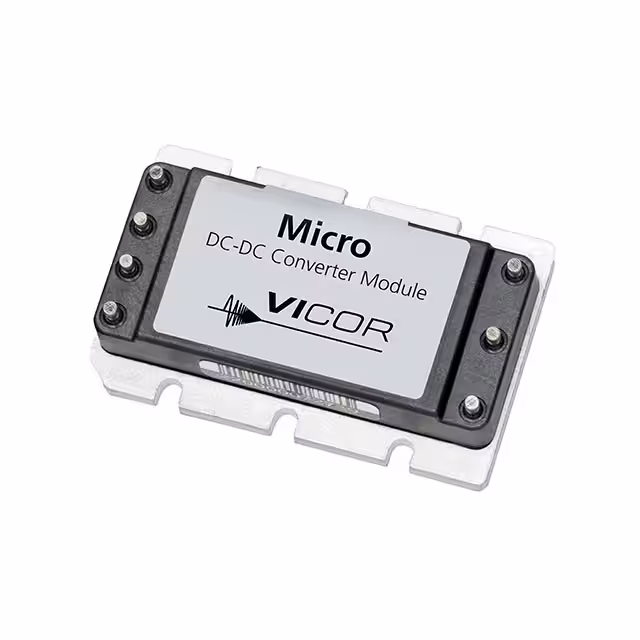

S110C5C75BL3

Manufacturer :

Vicor

Product Category :

Terminal Finish :

Tin/Lead (Sn/Pb)

Width :

36.8mm

Input Voltage-Nom :

110V

Protections :

OUTPUT OVER VOLTAGE

Terminal Pitch :

6.99mm

Output Voltage-Min :

4.95V

Length :

57.9mm

Input Voltage (Min) :

66V

Factory Lead Time :

16 Weeks

Operating Temperature (Max) :

100°C

RoHS Status :

Non-RoHS Compliant

Additional Feature :

SEATED HT CALCULATED

Output Voltage-Max :

5.05V

Height Seated (Max) :

13.2mm

Input Voltage (Max) :

154V

Output Voltage :

5V

Temperature Grade :

Other

ECCN Code :

EAR99

Terminal Position :

UNSPECIFIED

Total Power Output-Max :

75W

Number of Functions :

1

Ripple Voltage (Main Out) :

0.0407Vrms

Analog IC - Other Type :

DC-DC REGULATED POWER SUPPLY MODULE

Approval Agency :

CE, TUV, UL

Surface Mount :

No

Number of Terminations :

7

Operating Temperature (Min) :

-20°C

Output Current-Max :

15A

Height :

12.7mm

Number of Outputs :

1

JESD-30 Code :

R-PXMA-P7

JESD-609 Code :

e0

Reach Compliance Code :

Compliant

Terminal Form :

PIN/PEG

Efficiency (Main Output) :

86.8%
