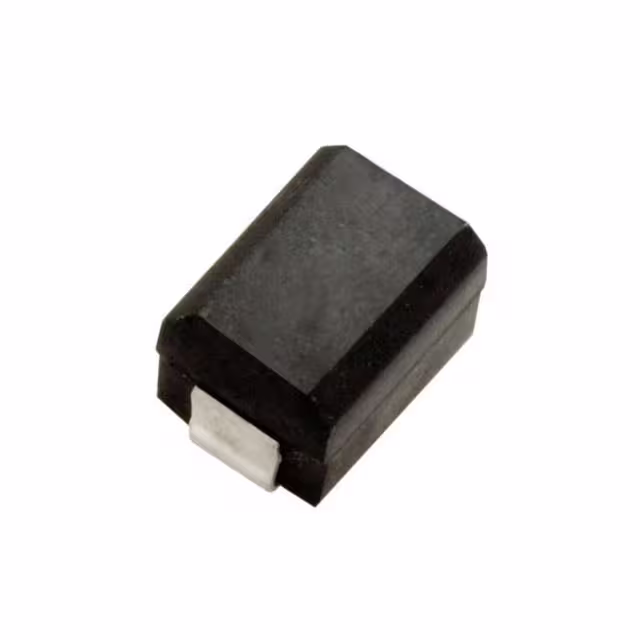

S1812-103G

Manufacturer :

API Delevan

Product Category :

Fixed Inductors

Inductor Application :

RF INDUCTOR

Depth :

3.4mm

Terminal Finish :

Tin/Lead (Sn63Pb37)

Max DC Current :

333mA

Mount :

Surface Mount

ECCN Code :

EAR99

Package / Case :

1812 (4532 Metric)

Terminal Placement :

DUAL ENDED

Pbfree Code :

No

Tolerance :

±2%

Quality Factor-Min (at L-nom) :

50

Mounting Type :

Surface Mount

Inductor Type :

GENERAL PURPOSE INDUCTOR

JESD-609 Code :

e0

Packaging :

Tape and Reel (TR)

Test Frequency :

2.5MHz

Number of Terminations :

2

Operating Temperature :

-55°C~125°C

Shape/Size Description :

RECTANGULAR PACKAGE

Inductance :

10μH

Radiation Hardening :

No

Published :

2010

Size / Dimension :

0.189Lx0.134W 4.80mmx3.40mm

Termination :

SMD/SMT

Series :

S1812

Material - Core :

Ferrite

Height :

3.4mm

DC Resistance (DCR) :

1.8Ohm Max

Q @ Freq :

50 @ 2.5MHz

Packing Method :

TR, 13 INCH

Terminal Shape :

WRAPAROUND

Current Rating :

333mA

Frequency - Self Resonant :

25MHz

Case Code (Metric) :

4532

Case Code (Imperial) :

1812

Factory Lead Time :

20 Weeks

RoHS Status :

Non-RoHS Compliant

Number of Functions :

1

Height Seated (Max) :

0.134 3.40mm

Shielding :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Q Factor :

50
