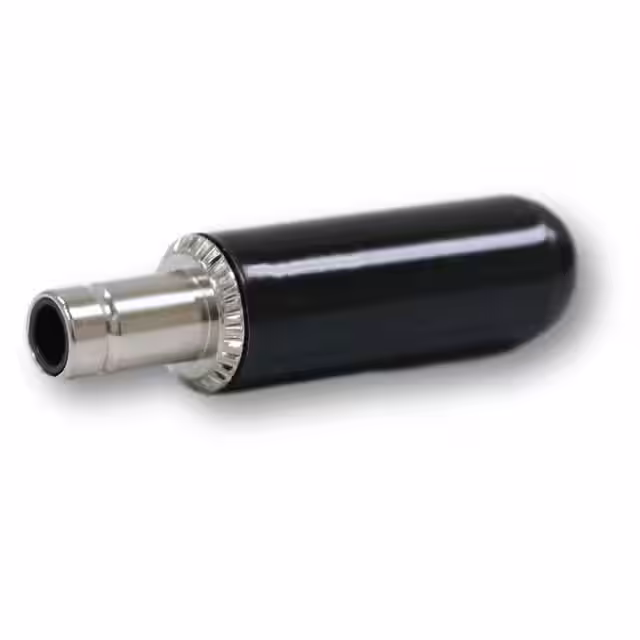

S760Z

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Voltage - Rated :

24VDC

Thread Size :

-

Number of Terminals :

2

Outside Contact Diameter :

5.5 mm

Packaging :

Bulk

Product Length (mm) :

36.1(mm)

Actual Diameter :

0.079 (2.00mm ID), 0.217 (5.50mm OD)

Current Rating (Amps) :

5 A

Inside Contact Diameter :

2 mm

Number of Ports :

1(Port)

Voltage Rating :

24 VDC

Current Rating (Max) :

5(A)

Operating Temperature :

-

Gender :

PL

Number of Contacts :

2(POS)

Shielding :

Unshielded

Product Depth (mm) :

Not Required(mm)

Product Height (mm) :

Not Required(mm)

Termination Style :

Solder

Pin Diameter :

-

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Mounting Angle :

Straight

Contact Material - Plating :

Tin

Contact Plating :

Nickel

Itar Registered :

Unavailable

RoHS :

Details

Type :

DC Power

Voltage Rating Max :

24VDC

Internal Switch(s) :

Does Not Contain Switch

Includes :

-

Termination Method :

Solder

Ingress Protection :

-

Series :

-

IP Rating :

-

Connector Type :

PLUG

Product Status :

Active

Mating Length/Depth :

0.374 (9.50mm)

Insulation Color :

White

Mounting Type :

Free Hanging (In-Line)

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Housing Material :

Thermoplastic (TP)

Product :

Plugs

Mounting Feature :

-

Product Diameter (mm) :

9.5(mm)

Body Color :

Silver, Black

Features :

Cable Clamp

Body Orientation :

Straight

Termination :

Solder Eyelet(s)

Contact Material :

COPPER ALLOY

Body Material :

COPPER ALLOY

Package :

Bulk

Mounting Style :

CABLE

Current Rating :

5 A

ECCN :

EAR99

Material Flammability Rating :

-
