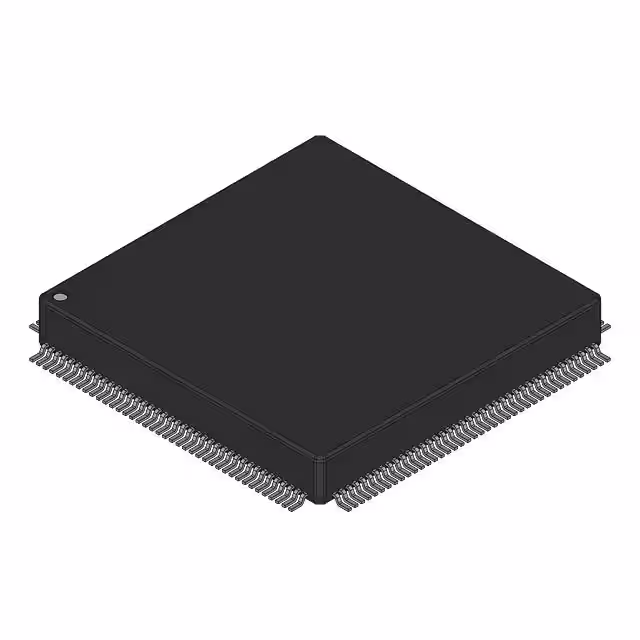

S82426EX

Manufacturer :

Altera (Intel)

Product Category :

Controllers

Pin Count :

160

Seated Height-Max :

4mm

ECCN Code :

3A991.A.2

uPs/uCs/Peripheral ICs Type :

BUS CONTROLLER, ISA

Length :

28mm

Supply Voltage-Max (Vsup) :

5.25V

Terminal Form :

Gull wing

Temperature Grade :

Other

External Data Bus Width :

32

Clock Frequency :

33MHz

Terminal Position :

QUAD

Supply Voltage :

5V

Terminal Pitch :

0.65mm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Supply Voltage-Min (Vsup) :

4.75V

Supply Current-Max :

100mA

Bus Compatibility :

80486; 80486 OVERDRIVE

Surface Mount :

yes

RoHS Status :

Non-RoHS Compliant

Qualification Status :

Not Qualified

Width :

28mm

JESD-609 Code :

e0

Number of Terminals :

160

Power Supplies :

5V

Operating Temperature (Max) :

85°C

Address Bus Width :

32

JESD-30 Code :

S-PQFP-G160

Terminal Finish :

Tin/Lead (Sn/Pb)

Reach Compliance Code :

Compliant

HTS Code :

8542.31.00.01
