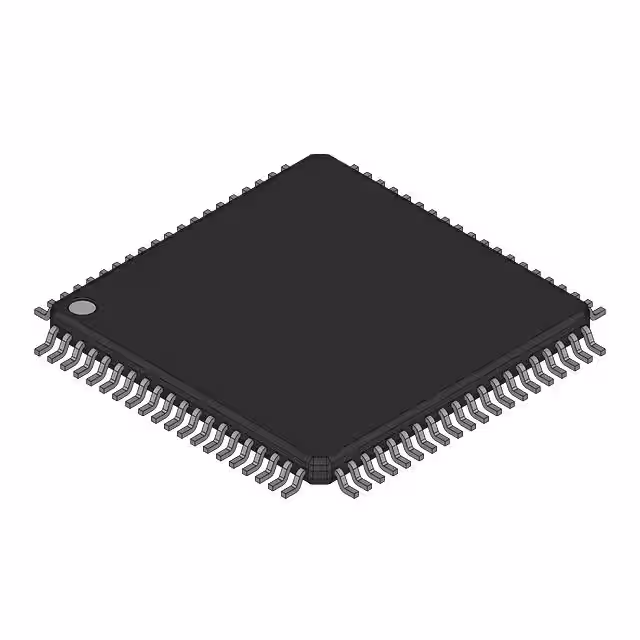

SABC161KLMHA

Manufacturer :

Infineon Technologies

Product Category :

Microcontrollers

Terminal Form :

Gull wing

Number of I/O :

63

Number of Terminations :

80

Package / Case :

QFP

Supply Voltage :

5V

Terminal Position :

QUAD

Frequency :

20MHz

Frequency (Max) :

20MHz

Power Dissipation-Max :

1.5W

Min Supply Voltage :

4.5V

Max Supply Voltage :

5.5V

Height Seated (Max) :

2.45mm

Data Bus Width :

16b

Oscillator Type :

External

Terminal Pitch :

0.65mm

Peripherals :

POR, PWM, WDT

Memory Type :

ROM, ROMless

Qualification Status :

Not Qualified

Has ADC :

No

Number of Timers/Counters :

3

Min Operating Temperature :

0°C

Number of Programmable I/O :

63

Interface :

EBI/EMI, SPI, UART, USART

Operating Supply Voltage :

5V

Max Operating Temperature :

70°C

Bit Size :

16

Pin Count :

80

Number of Pins :

80

RAM Size :

1kB

PWM Channels :

No

Temperature Grade :

COMMERCIAL

DAC Channels :

No

Length :

14mm

Mount :

Surface Mount

Address Bus Width :

22

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER

RoHS Status :

RoHS Compliant
