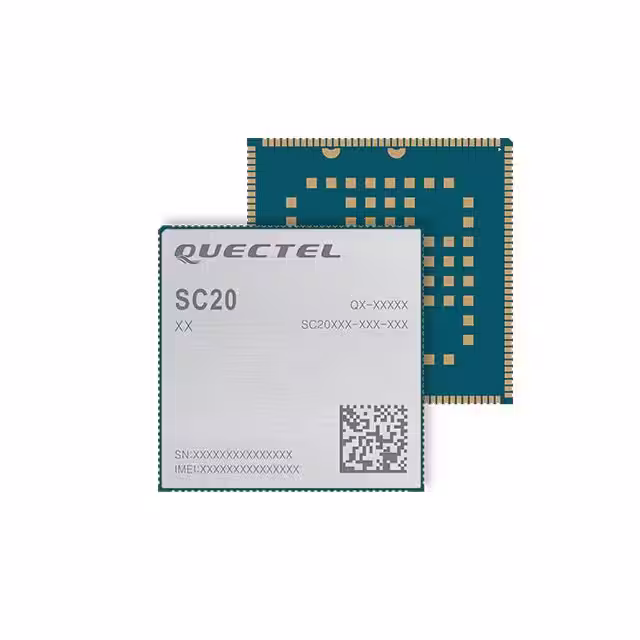

SC20ASA-8GB-STD

Manufacturer :

Quectel

Product Category :

RF Transceiver Modules and Modems

Sensitivity :

-

Base Product Number :

SC20

Package / Case :

Module

Modulation :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Operating Temperature :

-35°C ~ 75°C

RF Family/Standard :

Bluetooth, Cellular, Navigation, WiFi

Serial Interfaces :

ADC, GPIO, I²C, PCM, PWM, UART, USB

Antenna Type :

Antenna Not Included

Tradename :

Wireless communication module

Dimensions :

40.5 mm x 40.5 mm x 2.8 mm

RoHS :

Details

Memory Size :

-

Utilized IC / Part :

-

Current - Receiving :

-

Series :

SC20

Voltage - Supply :

3.5V ~ 4.2V

Frequency :

850 MHz, 1.9 GHz

Data Rate :

150Mbps

Packaging :

Reel

Product Status :

Active

Operating Supply Voltage :

3.8 V

Output Power :

33 dBm

Protocol :

802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS

Current - Transmitting :

-

Mounting Type :

Surface Mount

Power - Output :

-

Maximum Operating Temperature :

+ 75 C

Minimum Operating Temperature :

- 40 C

Interface Type :

ADC, Audio, Camera, GPIO, I2C, SPI, UART, USB
