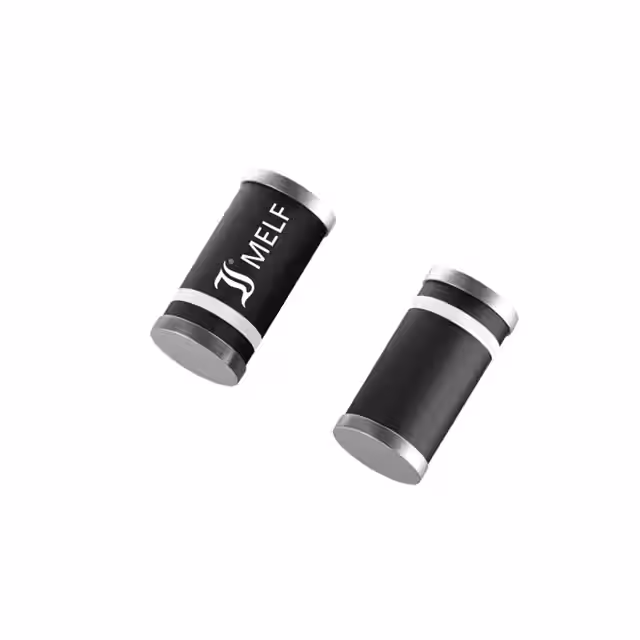

SDA4AK

Manufacturer :

Diotec Semiconductor

Product Category :

Terminal Position :

END

Power Dissipation-Max :

1W

Operating Temperature (Min) :

-50°C

Configuration :

Single

Breakdown Voltage-Max :

2V

Polarity :

Bidirectional

Pin Count :

2

Number of Elements :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Case Connection :

Isolated

JESD-30 Code :

O-PELF-R2

Diode Element Material :

SILICON

Reach Compliance Code :

Compliant

Qualification Status :

Not Qualified

HTS Code :

8541.10.00.50

Terminal Finish :

Tin/Silver (Sn/Ag)

JEDEC-95 Code :

DO-213AB

ECCN Code :

EAR99

Surface Mount :

yes

JESD-609 Code :

e2

Number of Terminals :

2

Non-rep Peak Rev Power Dis-Max :

300W

Diode Type :

TRANS VOLTAGE SUPPRESSOR DIODE

Breakdown Voltage-Min :

1.6V

Terminal Form :

WRAP AROUND

Operating Temperature (Max) :

150°C

Rep Pk Reverse Voltage-Max :

1V

RoHS Status :

RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
