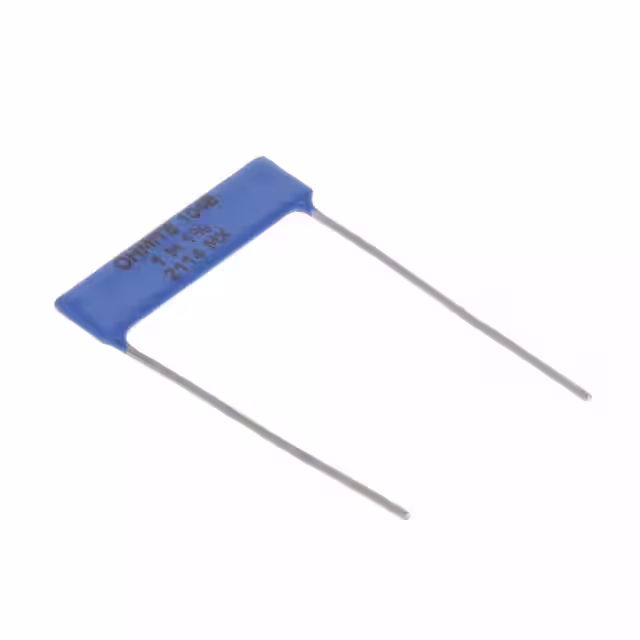

SM104031004FE

Manufacturer :

Ohmite

Product Category :

Through Hole Resistors

Qualification :

-

Termination Style :

Radial

Package :

Bulk

Diameter :

-

Features :

High Voltage, Non-Inductive

Voltage Rating (DC) :

10 kV

Technology :

Thick Film

Product Type :

Thick Film Resistors

Resistor Type :

PRECISION

Operating Temperature :

-55°C ~ 110°C

REACH SVHC :

Unknown

Power Rating :

1.5W

Width :

2.54 mm

Package / Case :

Radial

Product :

Thick Film Resistors Leaded

Brand :

Ohmite

Mounting Style :

PCB Mount

Composition :

Thick Film

Power (Watts) :

1.5W

Lead Spacing :

22.86 mm

Type :

Precision Thick Film Planar

Failure Rate :

-

Min Operating Temperature :

-55 °C

Packaging :

Bulk

Voltage Rating :

10kV

Series :

Slim-Mox

Product Category :

Thick Film Resistors - Through Hole

Height :

8.64 mm

Product Length :

27.43mm

RoHS :

Details

Subcategory :

Resistors

Height - Seated (Max) :

0.340 (8.64mm)

Tolerance :

±1%

Product Width :

2.4mm

Max Operating Temperature :

110 °C

Lead Pitch :

22.86 mm

Length :

27.43 mm

Supplier Device Package :

Radial

Size / Dimension :

1.080 L x 0.100 W (27.43mm x 2.54mm)

Maximum Operating Temperature :

+110°C

Temperature Coefficient :

±25ppm/°C

Minimum Operating Temperature :

-55°C

Number of Terminations :

2

Manufacturer :

Ohmite

Lead Diameter :

0.813 mm

Tradename :

Slim-Mox

Lead Length :

33 mm

Product Status :

Active

Resistance :

1MΩ

Resistance Tolerance :

± 1%
