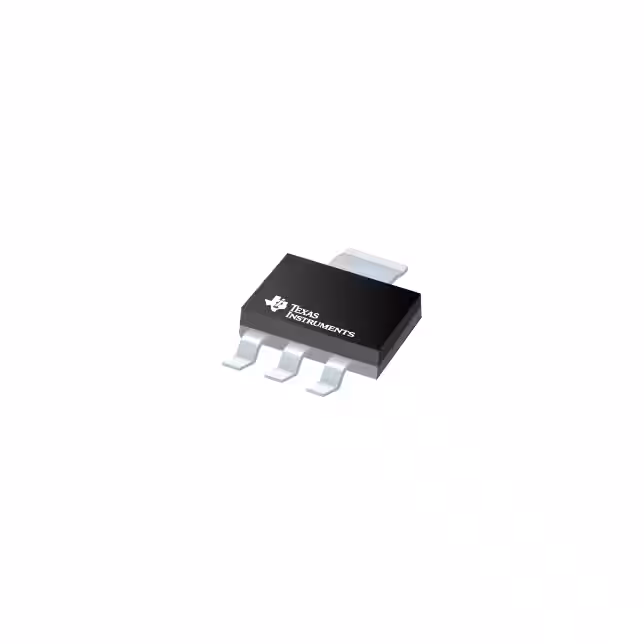

SN78MCDCYR

Manufacturer :

Texas Instruments

Product Category :

Voltage Regulators - Linear

Pbfree Code :

yes

Terminal Position :

Dual

Height :

1.8mm

Output Current1-Max :

0.5A

Quiescent Current :

4.5mA

Peak Reflow Temperature (Cel) :

260

Max Operating Temperature :

125°C

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Number of Functions :

1

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Terminal Form :

Gull wing

Dropout Voltage1-Nom :

2V

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Package / Case :

SOT-223

Base Part Number :

SN78

JESD-609 Code :

e3

Input Voltage (Max) :

30V

Min Operating Temperature :

-40°C

Surface Mount :

yes

Factory Lead Time :

6 Weeks

Length :

6.5mm

Packing Method :

TR

Output Voltage 1 :

5V

Number of Terminations :

4

Output Voltage1-Min :

3.3V

Input Voltage (Min) :

5.3V

Thickness :

1.6mm

Number of Outputs :

1

Dropout Voltage :

2V

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Width :

3.5mm

Number of Pins :

4

Adjustability :

FIXED

Input Voltage Absolute-Max :

35V

Terminal Pitch :

2.3mm

Packaging :

Tape and Reel (TR)

Terminal Finish :

Matte Tin (Sn)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
