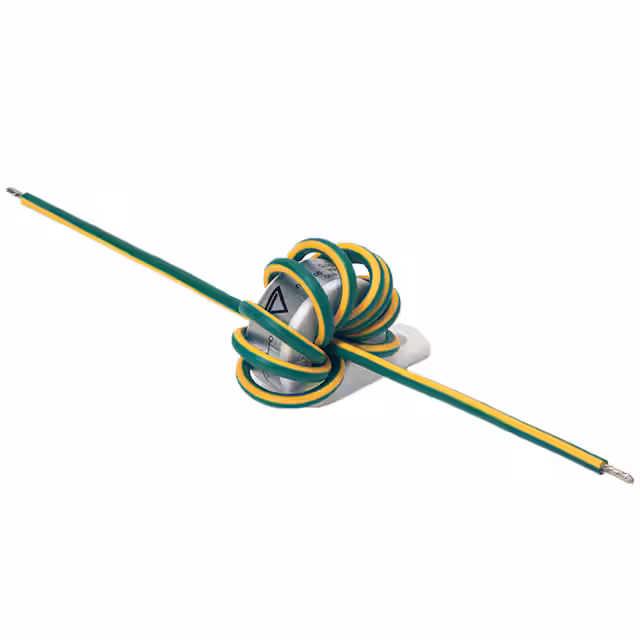

SNG-25A-600

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Q @ Freq :

-

Product Category :

Power Inductors - Leaded

Termination Style :

Wire Leads

Minimum Operating Temperature :

- 25 C

Package / Case :

Vertical, 2 Wire Leads

Application :

COMMERCIAL

Ratings :

-

Packaging :

Tray

RoHS :

Details

Product :

Power Inductors

Height - Seated (Max) :

0.945" (24.00mm)

Base Product Number :

SNG-25

Core Material :

Ferrite

Length :

24 mm

DC Resistance (DCR) :

20mOhm Max

Subcategory :

Inductors, Chokes and Coils

Series :

SNG

Package :

Bulk

Product Type :

Fixed Inductors

Features :

-

Supplier Device Package :

-

Size / Dimension :

1.535" Dia (39.00mm)

Brand :

KEMET

Shielding :

Unshielded

Current - Saturation (Isat) :

-

Operating Temperature :

-25°C ~ 105°C

Frequency - Self Resonant :

-

Material - Core :

Manganese Zinc Ferrite (MnZn)

Manufacturer :

KEMET

Saturation Current :

-

Height :

-

Tolerance :

-30%, +50%

Termination :

Standard

Product Status :

Active

Type :

Drum Core, Wirewound

Width :

-

Mounting Style :

PCB Mount

Mounting Type :

User Defined

Inductance :

600 μH

Maximum Operating Temperature :

+ 105 C

Diameter :

39 mm

Test Frequency :

160 kHz

Self Resonant Frequency :

-

Inductance Frequency - Test :

160 kHz
