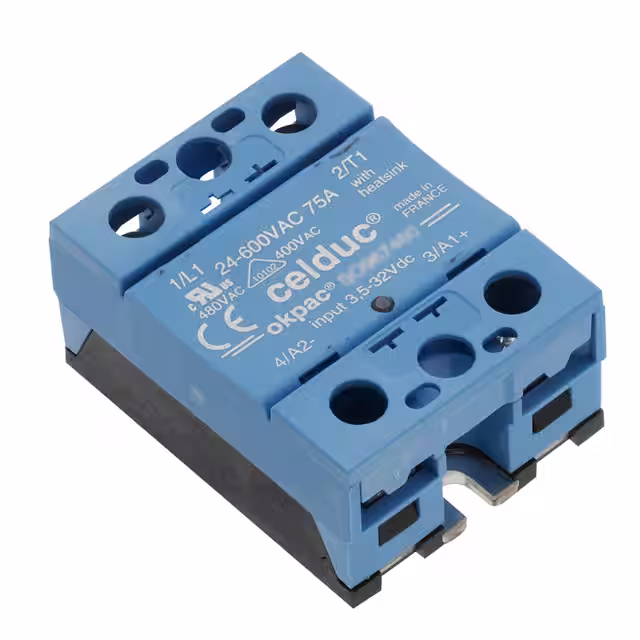

SO963460

Manufacturer :

Celduc

Product Category :

Solid State Relays

Contact Configuration :

-

On-State Resistance (Max) :

14 mOhms

Mounting Type :

Chassis Mount

Dimensions :

58.5 x 45 x 29mm

Voltage - Input :

3.5 ~ 32VDC

Switching Mode :

Zero Crossing

Output Device :

Thyristor

Supplier Device Package :

-

Minimum Operating Temperature :

-55°C

Output Type :

AC, Zero Cross

Product Length :

76.2 mm

Package :

Box

Package / Case :

Module

Terminal Type :

Screw

Voltage - Load :

24 V ~ 600 V

Length :

58.5mm

Depth :

45mm

Standards Met :

CE, VDE, cURus 100kA, EAC

Load Current :

40 A

Termination Style :

-

Range :

okpac

Maximum Operating Temperature :

+100°C

Relay Type :

Single Phase Solid State Relay

Circuit :

SPST-NO (1 Form A)

Operating Temperature Range :

-55 → +100°C

Series :

okpac®

Product Status :

Active

Number of Poles :

1

Height :

29mm
