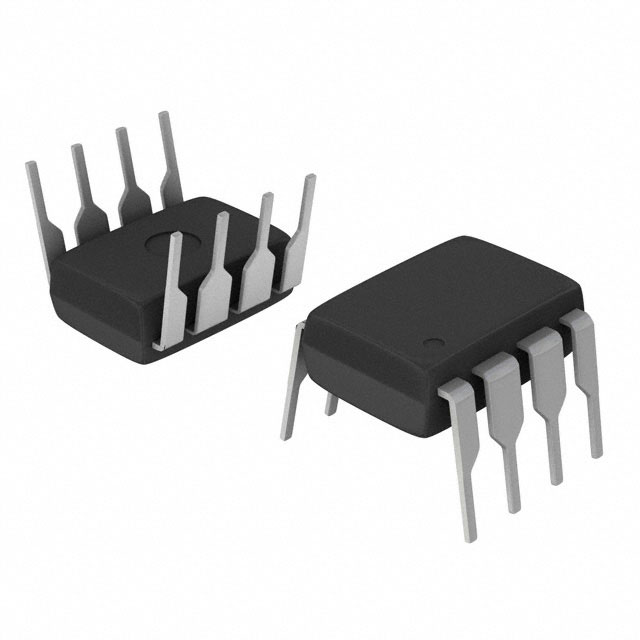

SP481ECP-L

Manufacturer :

MaxLinear

Product Category :

Drivers, Receivers, Transceivers

Nominal Supply Current :

900μA

Lead Free :

Lead Free

Qualification Status :

Not Qualified

Terminal Finish :

Matte Tin (Sn)

Operating Supply Voltage :

5V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power Supplies :

5V

Max Operating Temperature :

70°C

Transmit Delay-Max :

60 ns

Number of Transmitters :

1

Differential Output :

yes

Temperature Grade :

COMMERCIAL

Terminal Pitch :

2.54mm

Driver Number of Bits :

1

Terminal Position :

Dual

ECCN Code :

EAR99

Voltage - Output :

3V

Data Rate :

10 Mbps

Mount :

Through Hole

Number of Pins :

8

Power Dissipation-Max :

1W

Width :

7.62mm

JESD-609 Code :

e3

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

8

Receiver Number of Bits :

1

Logic Function :

Transceiver

Simplex/Duplex :

Half Duplex

Max Supply Voltage :

5.25V

Length :

9.27mm

Min Operating Temperature :

0°C

RoHS Status :

RoHS Compliant

Package / Case :

PDIP

Number of Functions :

1

Min Supply Voltage :

4.75V

Height Seated (Max) :

5.33mm

Supply Voltage :

5V

Input Characteristics :

DIFFERENTIAL SCHMITT TRIGGER

Current - Output :

1μA
