SPS-61T-250
Or copy the link below:
- Mfr.Part #
- SPS-61T-250
- Manufacturer
- JST
- Package / Case
- Datasheet
- Download
- Description

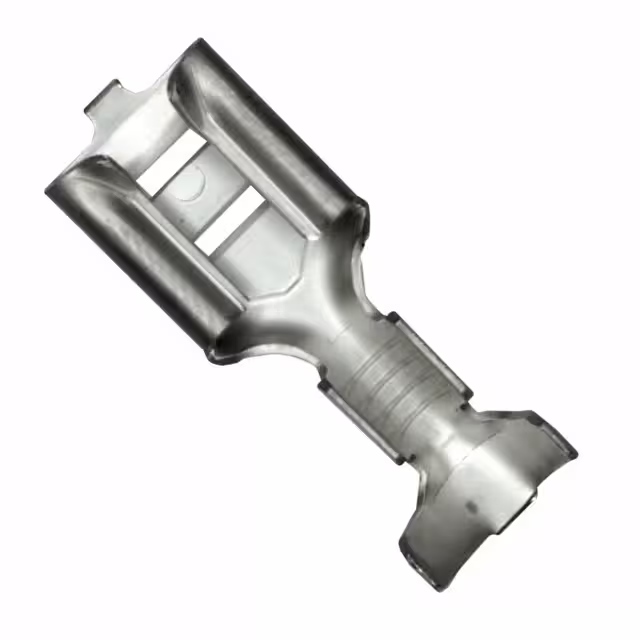

- CONN QC RCPT 14-18AWG 0.250
- Stock
- 222,750
- In Stock ：
- 222,750
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JST
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Terminal Type :
- Standard
- Rated Current :
- 25A
- HTS Code :
- 8536.90.40.00
- Rated Voltage(AC) :
- 250V
- Cable Entry-Max :
- 0.154 inch
- Insulation Diameter :
- 0.083 ~ 0.154 (2.11mm ~ 3.91mm)
- Pbfree Code :
- yes
- Packaging :
- Tape and Reel (TR)
- Operating Temperature (Min) :
- -40°C
- Published :
- 2016
- Wire Gauge (Max) :
- 18 AWG
- Wire Gauge (Min) :
- 14 AWG
- Lead Free :
- Lead Free
- Operating Temperature (Max) :
- 105°C
- Wire Gauge :
- 14-18 AWG
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Connector Support Type :
- CONNECTOR ACCESSORY
- Cable Entry-Min :
- 0.083 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 16 Weeks
- Series :
- PS
- Mounting Type :
- Free Hanging (In-Line)
- Insulation :
- Non-Insulated
- MIL Conformance :
- No
- Tab Thickness :
- 0.032 0.81mm
- Width - Tab :
- 0.250 6.35mm
- IEC Conformance :
- No
- Rated Voltage(DC) :
- 250V
- Mount :
- Free Hanging
- Contact Finish :
- Tin
- Length - Overall :
- 0.819 20.80mm
- DIN Conformance :
- No
- Length - Tab :
- 0.252 6.40mm
- Contact Resistance :
- 6mOhm
- Gender :
- FEMALE
- Orientation :
- Straight
- Assembly Item Name :
- Contact
- Approval Agency :
- CSA; TUV; UL
- Contact Material :
- Brass
- Termination :
- Crimp
- Length :
- 20.8026mm
- Datasheets
- SPS-61T-250
