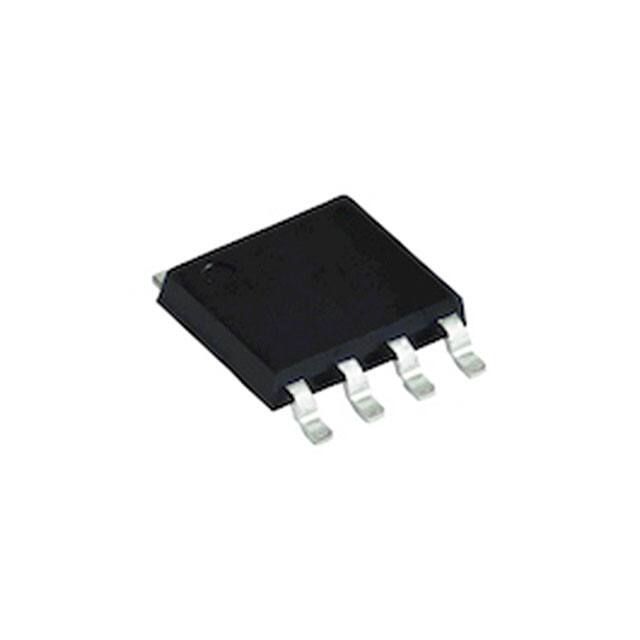

SQJA26EP-T1_GE3

Manufacturer :

Vishay

Product Category :

Transistors - FETs, MOSFETs - Single

Product Category :

MOSFET

Manufacturer :

Vishay

Operating Temperature :

-55°C ~ 175°C (TJ)

Product Type :

MOSFET

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Channel Mode :

Enhancement

Transistor Polarity :

N-Channel

Mounting Type :

Surface Mount

Pin Count :

4

Packaging :

MouseReel

Supplier Device Package :

PowerPAK? SO-8

FET Type :

N-Channel

Drain to Source Voltage (Vdss) :

30 V

FET Feature :

-

MSL :

-

Power Dissipation :

500W

Package :

Digi-Reel?

RoHS :

Details

Input Capacitance (Ciss) (Max) @ Vds :

9778 pF @ 25 V

Minimum Operating Temperature :

- 55 C

Vgs (Max) :

±20V

Series :

-

Subcategory :

MOSFETs

Package / Case :

PowerPAK? SO-8

Mounting Style :

SMD/SMT

Brand :

Vishay Semiconductors

Number of Channels :

1 Channel

Number of Elements per Chip :

1

Package Type :

PowerPAK SO-8L

Qualification :

AEC-Q101

Vgs(th) (Max) @ Id :

2.5V @ 250μA

Current - Continuous Drain (Id) @ 25°C :

410A (Tc)

Product :

MOSFET

Channel Type :

N

Product Status :

Active

Gate Charge (Qg) (Max) @ Vgs :

195 nC @ 10 V

Rds On (Max) @ Id, Vgs :

0.77mOhm @ 15A, 10V

Maximum Operating Temperature :

+ 175 C

Continuous Drain Current Id :

410A

Power Dissipation (Max) :

500W (Tc)
