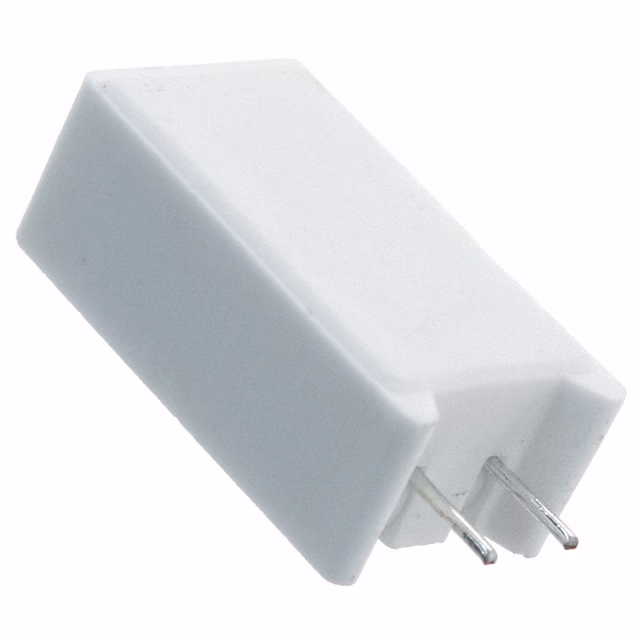

SQMR515KJ
Or copy the link below:
- Mfr.Part #
- SQMR515KJ
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Radial
- Datasheet
- Download
- Description
- RES 15K OHM 5% 5W RADIAL
- Stock
- 1,134
- In Stock ：
- 1,134
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Through Hole Resistors
- Number of Terminations :
- 2
- Type :
- Metal Oxide
- Features :
- Flame Proof, Moisture Resistant, Safety
- Subcategory :
- Resistors
- Operating Temperature :
- -55°C ~ 250°C
- Minimum Operating Temperature :
- -55°C
- Resistance :
- 15000(ohm)
- Case Style :
- Ceramic
- Voltage Rating :
- 350V
- Composition :
- Metal Film
- Temperature Coefficient :
- ±300(ppm/°C)
- Size / Dimension :
- 0.512 L x 0.354 W (13.00mm x 9.00mm)
- Maximum Operating Temperature :
- +250°C
- Package / Case :
- Radial
- Power (Watts) :
- 5W
- Number of Terminals :
- 2
- Packaging :
- BOX/LOOSE
- Temperature Range @ Derated Power :
- 70 to 275
- Product Status :
- Active
- Base Product Number :
- SQMR5
- Resistance Tolerance :
- ± 5%
- Tolerance :
- ±5%
- Construction :
- RECTANGULAR
- Product :
- Metal Film Resistors - Through Hole
- Package :
- Bulk
- Power Rating :
- 5W
- Resistor Type :
- High Power
- Flame-Proof Support :
- yes
- Manufacturer :
- TE Connectivity
- Brand :
- TE Connectivity / Holsworthy
- Product Height (mm) :
- 25(mm)
- Mounting Style :
- PCB Mount
- Product Category :
- Metal Film Resistors - Through Hole
- Power Rating(s) :
- 5(W)
- Length :
- 25 mm
- Height - Seated (Max) :
- 1.024 (26.00mm)
- Product Diameter (mm) :
- Not Required(mm)
- Product Type :
- Metal Film Resistors
- Height :
- 25 mm
- Technology :
- Metal Oxide
- Product Width :
- 9mm
- Supplier Device Package :
- Radial Lead
- Lead Spacing (nom) :
- 5(mm)
- Width :
- 9 mm
- Product Length :
- 13mm
- Termination Style :
- Radial
- Failure Rate :
- Not Required
- Lead Pitch :
- 5mm
- Product Depth (mm) :
- 9(mm)
- Qualification :
- -
- RoHS :
- Details
- Military Standard :
- Not Required
- Series :
- SQ, CGS
- Tolerance (+ or -) :
- 5%
- Operating Temp Range :
- -55C to 250C
- Product Length (mm) :
- 13(mm)
- Datasheets
- SQMR515KJ
High Power, 15000(ohm), 5W, Metal Film,
