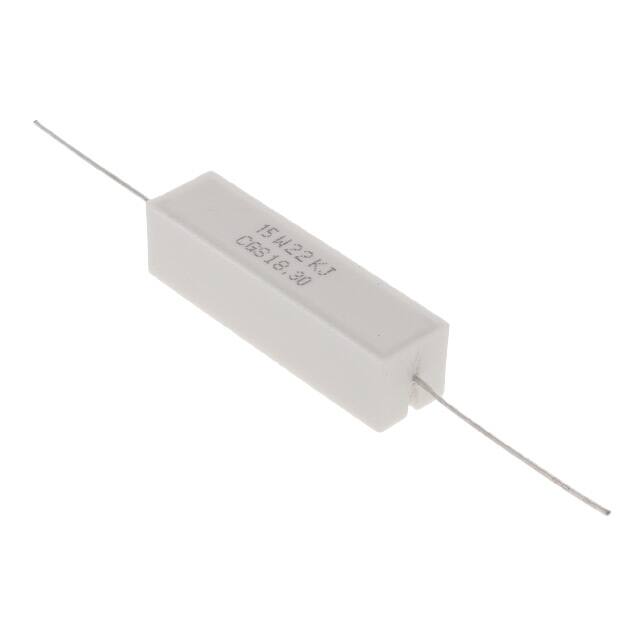

SQPR1522KJ

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Features :

Flame Proof, Moisture Resistant, Safety

Minimum Operating Temperature :

- 55 C

Termination :

Axial

Resistance :

22 kOhms

Voltage Rating :

1 kV

Termination Style :

Axial

Package :

Bulk

Product Category :

Metal Film Resistors - Through Hole

Thermal Resistance @ Natural :

--

Lifecycle Status :

Production (Last Updated: 1 week ago)

Series :

pushPIN™

Radiation Hardening :

No

Temperature Coefficient :

±300ppm/°C

Base Product Number :

SQPR15

Shape :

Square, Fins

Power Dissipation @ Temperature Rise :

--

Max Power Dissipation :

15 W

Number of Resistors :

1

Package Cooled :

Assorted (BGA, LGA, CPU, ASIC...)

RoHS :

Details

Supplier Device Package :

Axial

Height Off Base (Height of Fin) :

0.790 (20.00mm)

Thermal Resistance @ Forced Air Flow :

11.49°C/W @ 100 LFM

Size / Dimension :

0.492 x 0.453 Rectangular x 1.890 L (12.50mm x 11.50mm x 48.00mm)

Packaging :

Bulk

Product :

Metal Film Resistors - Through Hole

Product Type :

Metal Film Resistors

Mounting Style :

PCB Mount

ELV :

Compliant

Manufacturer :

TE Connectivity

Height :

11.5062 mm

Diameter :

--

Brand :

TE Connectivity / AMP

Power (Watts) :

15W

Min Operating Temperature :

-55 °C

Length :

1.772 (45.00mm)

Failure Rate :

--

Maximum Operating Temperature :

+ 250 C

Package / Case :

Axial

Subcategory :

Resistors

Material Finish :

Blue Anodized

Tolerance :

±5%

Attachment Method :

Push Pin

Number of Terminations :

2

Type :

Top Mount

Lead Diameter :

0.8 mm

Power Rating :

15 W

Composition :

Metal Film

Height - Seated (Max) :

--

Technology :

Metal Film

Max Operating Temperature :

250 °C

Operating Temperature :

-55°C ~ 250°C

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Product Status :

Active

Mount :

Axial, Through Hole

Width :

1.772 (45.00mm)

Material :

Aluminum
