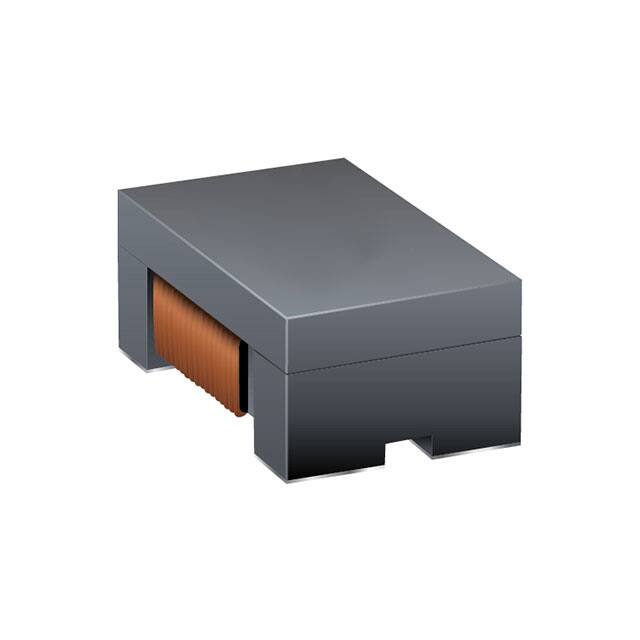

SRF4530A-101YH

Manufacturer :

Bourns, Inc.

Product Category :

Common Mode Chokes

DC Resistance (DCR) (Max) :

1.5Ohm

Filter Type :

-

Height :

3 mm

Shielding :

Shielded

RoHS :

Details

Manufacturer :

Bourns

Height (Max) :

0.118" (3.00mm)

Number of Channels :

1 Channel

Core Material :

Ferrite

Product Category :

Common Mode Chokes / Filters

Package :

Digi-Reel?

Inductance :

100 uH

Brand :

Bourns

Inductance @ Frequency :

100 μH @ 100 kHz

Width :

3.2 mm

Ratings :

AEC-Q200

Tolerance :

- 30 %, + 50 %

Series :

SRF4530A

Current Rating (Max) :

200mA

Operating Temperature :

-55°C ~ 150°C

Length :

4.5 mm

Voltage Rating - AC :

-

Approval Agency :

-

Termination Style :

SMD/SMT

Mounting Type :

Surface Mount

Test Frequency :

100 kHz

Product Type :

Common Mode Chokes

Product Status :

Active

Impedance @ Frequency :

7.5 kOhms @ 10 MHz

Minimum Operating Temperature :

- 55 C

Subcategory :

Inductors, Chokes and Coils

Impedance :

7.5 kOhms

Mounting Style :

PCB Mount

Number of Lines :

2

Maximum Operating Temperature :

+ 150 C

Size / Dimension :

0.177" L x 0.126" W (4.50mm x 3.20mm)

Package / Case :

Horizontal, 4 PC Pad

Voltage Rating - DC :

50V

Features :

-
