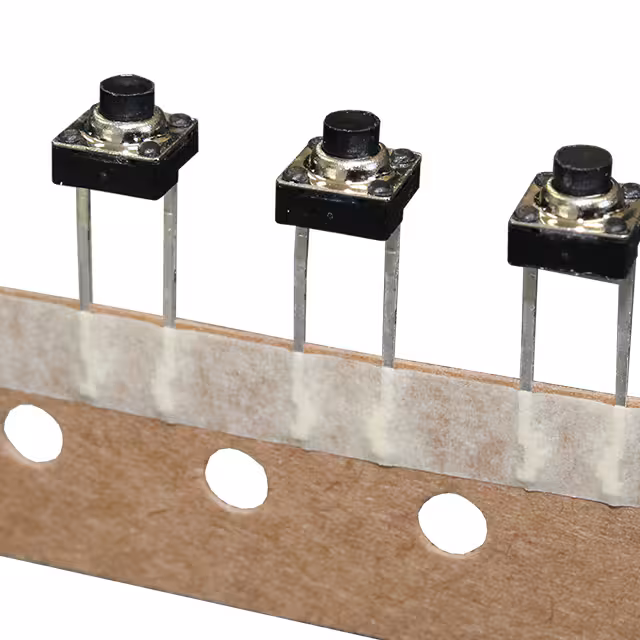

STK7.0LF260

Manufacturer :

CIT Relay and Switch

Product Category :

Mounting Type :

Through Hole

Switch Travel :

0.25mm

Outline :

6.20mm x 6.20mm

Operating Temperature :

-40°C ~ 85°C

Operating Force :

260gf

Termination Style :

PC Pin

Illumination :

Non-Illuminated

Product Status :

Active

Ingress Protection :

IP67 - Dust Tight, Waterproof

Switch Function :

Off-Mom

Illumination Type, Color :

-

Actuator Type :

Standard

Contact Rating @ Voltage :

0.05A @ 48VDC

Features :

-

Mechanical Life :

-

Actuator Material :

Polybutylene Terephthalate (PBT)

Actuator Length, Right Angle :

-

Circuit :

SPST-NO

Actuator Orientation :

Top Actuated

Series :

STK

Illumination Voltage (Nominal) :

-

Package :

Cut Tape (CT);Tape and Box (TB);

Actuator Height off PCB, Vertical :

7.00mm
