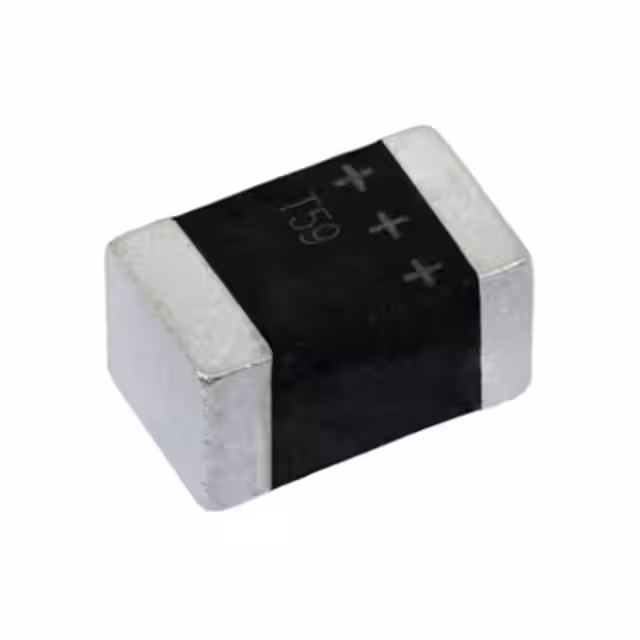

T59EE156M063C0100

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Height :

4.3 mm

Lead Spacing :

-

Qualification :

-

Voltage - Rated :

63 V

Width :

4.3 mm

Product Height :

4.3mm

Capacitance Tolerance :

20%

Operating Temperature :

-55°C ~ 125°C

Height - Seated (Max) :

0.169 (4.30mm)

Product Status :

Active

Tolerance :

20 %

Product :

Tantalum Organic Polymer Low ESR

Capacitance :

15 uF

Mounting Type :

Surface Mount

Tradename :

vPolyTan

RoHS :

Details

Ripple Current :

1572 mA

Lifetime @ Temp. :

2000 Hrs @ 125°C

Product Width :

4.3 mm

Package / Case :

2917 (7343 Metric)

Minimum Operating Temperature :

- 55 C

Leakage Current :

95 uA

Ratings :

-

Termination Style :

SMD/SMT

Maximum Operating Temperature :

+ 105 C

Product Length :

7.3 mm

Type :

Molded

ESR :

100 MOhms

ESR (Equivalent Series Resistance) :

100mOhm @ 100kHz

Packaging :

MouseReel

Length :

7.3 mm

Features :

GENERAL PURPOSE

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

Series :

T59

Manufacturer Size Code :

EE
