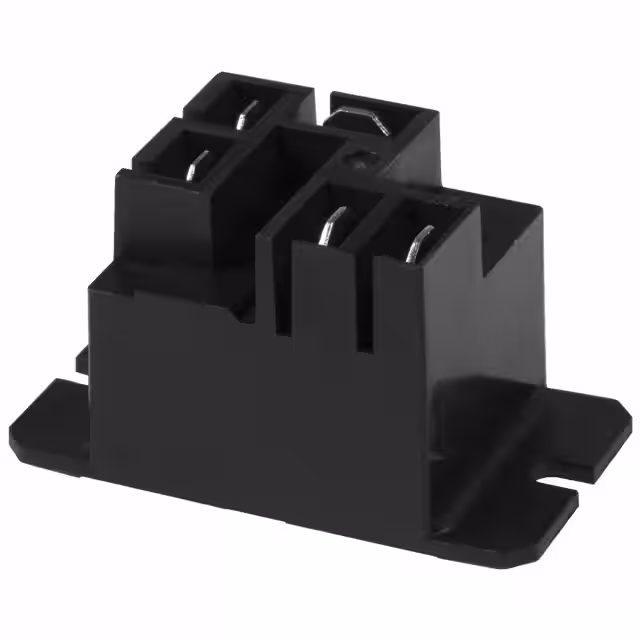

T9AP1D52-22-02
Or copy the link below:
- Mfr.Part #
- T9AP1D52-22-02
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 30A 22V
- Stock
- 23,187
- In Stock ：
- 23,187
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Contact Form :
- SPST (1 Form A)
- Height :
- 27.94 mm
- Features :
- -
- Brand :
- TE Connectivity / PandB
- Relay Type :
- GENERAL PURPOSE
- Mounting Style :
- Flange Mount
- Switching Voltage :
- 277 VAC
- Coil Current :
- 45.5 mA
- Coil Type :
- Non-Latching
- Type :
- Standard
- Series :
- T9A
- Base Product Number :
- T9AP1
- Manufacturer :
- TE Connectivity
- Package :
- Bulk
- Product Type :
- General Purpose Relays
- Product Status :
- Active
- Coil Resistance :
- 484 Ohms
- Release Time :
- 15 ms
- Product :
- Power Relays
- Operate Time :
- 15 ms
- Contact Termination :
- Quick Connect
- Contact Rating (Current) :
- 30 A
- Operating Temperature :
- -55°C ~ 85°C
- Must Operate Voltage :
- 16.5 VDC
- Contact Material :
- Silver Cadmium Oxide (AgCdO)
- Contact Current Rating :
- 30 A
- Product Category :
- General Purpose Relays
- Width :
- 27.43 mm
- Power Consumption :
- 1 W
- Termination Style :
- Quick Connect - 0.187/0.250
- Must Release Voltage :
- 2.2 VDC
- Coil Insulation :
- Class F
- Length :
- 50.29 mm
- RoHS :
- Details
- Seal Rating :
- -
- Mounting Type :
- Chassis Mount
- Coil Voltage :
- 22 VDC
- Subcategory :
- Relays
- Datasheets
- T9AP1D52-22-02
T9AP1D52-22-02 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
