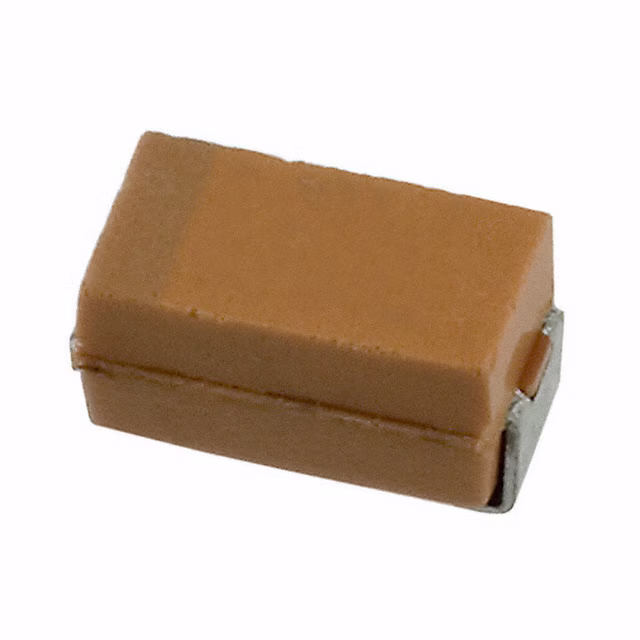

TAJA105K025ANJ

Manufacturer :

KYOCERA AVX

Product Category :

Tantalum Capacitors

Voltage - Rated DC :

25V

Published :

2013

Tolerance :

10%

Case Code (Imperial) :

1206

Voltage - Rated :

25V

JESD-609 Code :

e4

Dielectric Material :

TANTALUM (DRY/SOLID)

Min Operating Temperature :

-55°C

HTS Code :

8532.21.00.50

Dissipation Factor :

4 %

Leakage Current :

500nA

Polarity :

POLARIZED

Height :

1.8mm

Lead Free :

Lead Free

Terminal Shape :

J BEND

Max Operating Temperature :

125°C

RoHS Status :

RoHS Compliant

Capacitance :

1μF

Capacitor Type :

TANTALUM CAPACITOR

Pbfree Code :

yes

Number of Terminations :

2

Terminal Finish :

Gold (Au)

Width :

1.6mm

ESR (Equivalent Series Resistance) :

8Ohm

Case Code (Metric) :

3216

Length :

3.2mm

Mounting Feature :

Surface Mount

ECCN Code :

EAR99

Packing Method :

TR, 7 INCH

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

Termination :

SMD/SMT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Surface Mount :

yes

Reference Standard :

CECC30801-005

Factory Lead Time :

21 Weeks

Tan Delta :

0.04

Depth :

1.6mm
